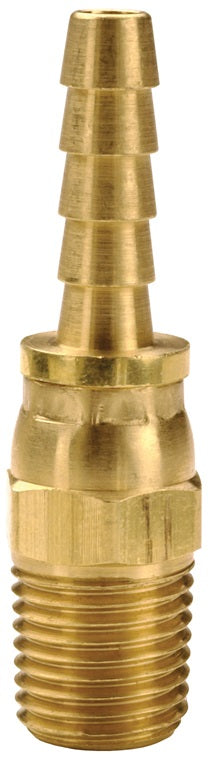

1030604C by Dixon Valve | Male Hose Barb Insert | 1/4" Male NPTF Swivel x 3/8" Hose ID | Brass

Save $0.31 Save $0.31
Original price $3.60
Original price $3.60 - Original price $3.60
Original price $3.60
Current price $3.29
$3.29 - $3.29
Current price $3.29

Dixon Valve
Male Hose Barb Insert | Male NPTF Swivel x Hose Barb


Specifications for Variant SKU: 1030604C Dixon
Series: 103 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Swivel
Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
  • Swivel for assembly convenience only, not for live swivel applications; operational PSI is 80.
Old
Part Number
Brass
Part Number
Male NPTF Hose I.D.
103-0402 1030402C 1/8" 1/4"
103-0404 1030404C 1/4" 1/4"
- 1030406C 3/8" 1/4"
- 1030504C 1/4" 5/16"
103-0604 1030604C 1/4" 3/8"
103-0606 1030606C 3/8" 3/8"
103-0806 1030806C 3/8" 1/2"
103-0808 1030808C 1/2" 1/2"
- 1031008C 1/2" 5/8"
- 1031204C 1/4" 3/4"
- 1031208C 1/2" 3/4"
103-1212 1031212C 3/4" 3/4"
103-1616 1031616C* 1" 1-11-1/2"

* Capped Threads

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
