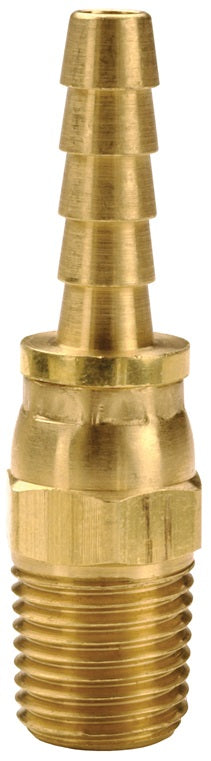

1031212C by Dixon Valve | Male Hose Barb Insert | 3/4" Male NPTF Swivel x 3/4" Hose ID | Brass

1031212C by Dixon Valve | Male Hose Barb Insert | 3/4" Male NPTF Swivel x 3/4" Hose ID | Brass

Save $4.89 Save $4.89
$12.22
$12.22 - $12.22
$12.22
$7.33
$7.33 - $7.33
$7.33

Dixon Valve
Male Hose Barb Insert | Male NPTF Swivel x Hose Barb
Specifications for Variant SKU: 1031212C Dixon
Series: 103 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Swivel
Compatible with the following Series: GS Black Multipurpose Air and Water Hose  |   GS Red Multipurpose Air and Water Hose
Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
  • Swivel for assembly convenience only, not for live swivel applications; operational PSI is 80.
Old
Part Number		 Brass
Part Number		 Male NPTF Hose I.D.
103-0402 1030402C 1/8" 1/4"
103-0404 1030404C 1/4" 1/4"
- 1030406C 3/8" 1/4"
- 1030504C 1/4" 5/16"
103-0604 1030604C 1/4" 3/8"
103-0606 1030606C 3/8" 3/8"
103-0806 1030806C 3/8" 1/2"
103-0808 1030808C 1/2" 1/2"
- 1031008C 1/2" 5/8"
- 1031204C 1/4" 3/4"
- 1031208C 1/2" 3/4"
103-1212 1031212C 3/4" 3/4"
103-1616 1031616C* 1" 1-11-1/2"

* Capped Threads
