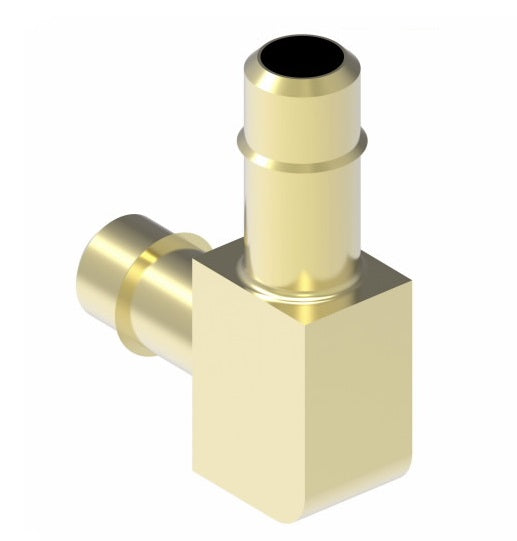

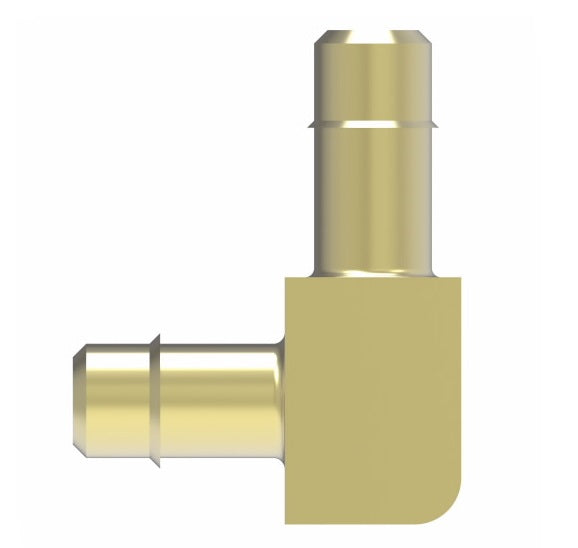

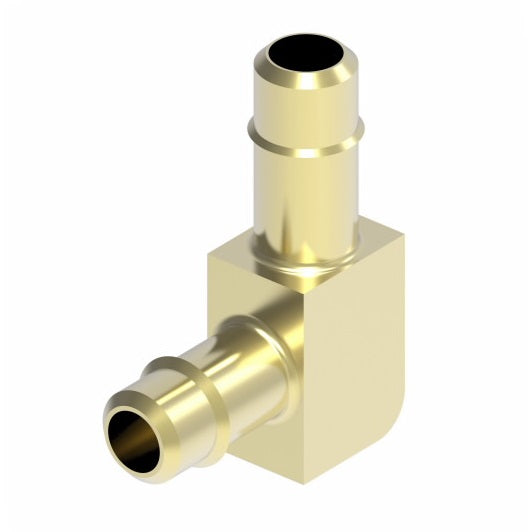

1065X4 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 1/4" Tubing OD x 1/4" Tubing OD | Brass
1065X4 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 1/4" Tubing OD x 1/4" Tubing OD | Brass
1065X4 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 1/4" Tubing OD x 1/4" Tubing OD | Brass
1065X4 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 1/4" Tubing OD x 1/4" Tubing OD | Brass

1065X4 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 1/4" Tubing OD x 1/4" Tubing OD | Brass

$5.90 - $5.90
$5.90
$5.90 - $5.90
$5.90

Aeroquip® by Danfoss
Mini-Barb Fitting - Union
Specifications for Variant SKU: 1065X4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/4in Hose Barb, Some Ends Match
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. M
1065X4 1/4" 0.70"
1065X6 3/8" 0.67"
1065X8 1/2" 0.94"
