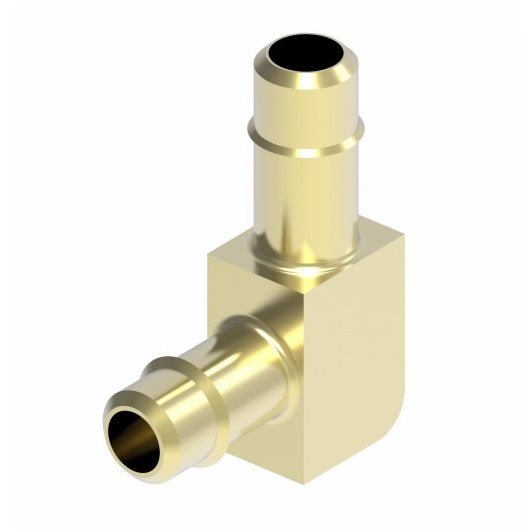

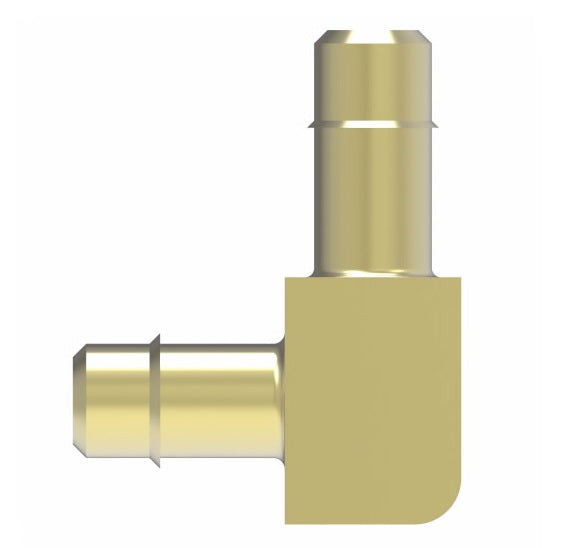

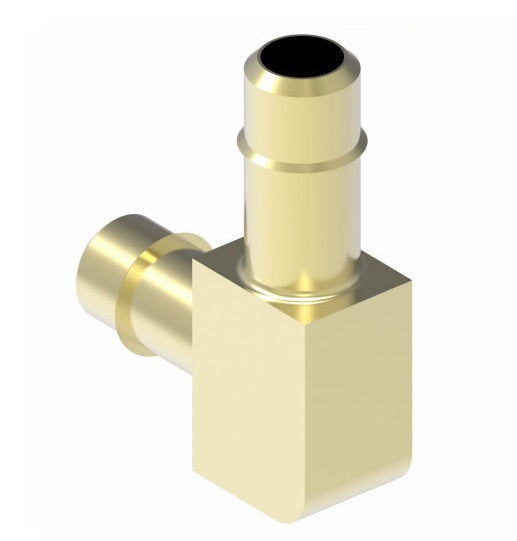

1065X6 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1065X6 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1065X6 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 3/8" Tubing OD x 3/8" Tubing OD | Brass
1065X6 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 3/8" Tubing OD x 3/8" Tubing OD | Brass

1065X6 by Danfoss | Mini-Barb Fitting | Union 90° Elbow | for 3/8" Tubing OD x 3/8" Tubing OD | Brass

$4.88 - $4.88
$4.88
$4.88 - $4.88
$4.88

Aeroquip® by Danfoss
Mini-Barb Fitting - Union
Specifications for Variant SKU: 1065X6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s): Brass
Compatible with the following Series: PT240 Series
Applications:
  • Temperature control circuits, test apparatus, lubricant, coolant lines, pneumatic circuits, vacuum and fluid systems.
Advantages:
  • Quick connecting - no tube preparation.
  • Hand assembly.
  • Low cost one-piece push-on design.
  • Barbed lip provides safe, positive connection.
  • Compact size permits use in extremely tight areas.
  • Excellent vibration resistance.
Used With:
  • PT240 Polyethylene tubing.
Material:
  • CA360 Brass
Pressure:
  • Will withstand burst pressures of plastic tubing.
Temperature Range:
  • Depends on tubing used.
Conformance:
  • An exclusive item with Danfoss. User approvals only.
Tubing OD D E J
5/32" 0.062" 0.113" 0.380"
*3/16" 0.078" 0.125" 0.500"
1/4" 0.127" 0.189" 0.500"
3/8" 0.196" 0.270" 0.500"
1/2" 0.312" 0.395" 0.630"

*No barb on 3/16" size.
Brass
Part Number		 Tubing O.D. M
1065X4 1/4" 0.70"
1065X6 3/8" 0.67"
1065X8 1/2" 0.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
