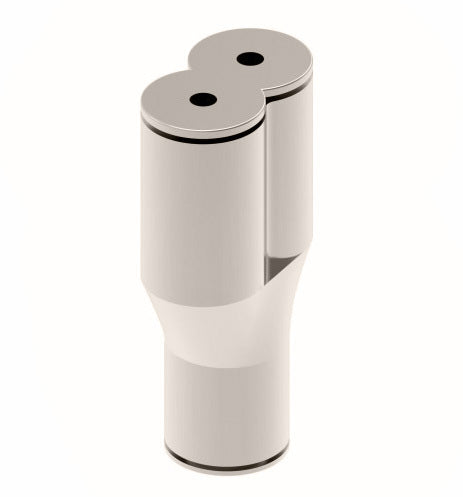

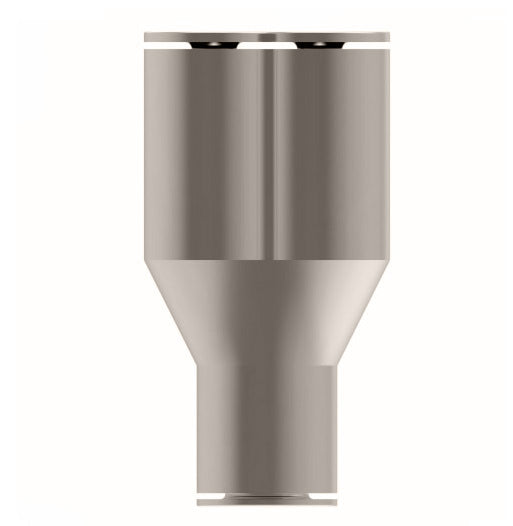

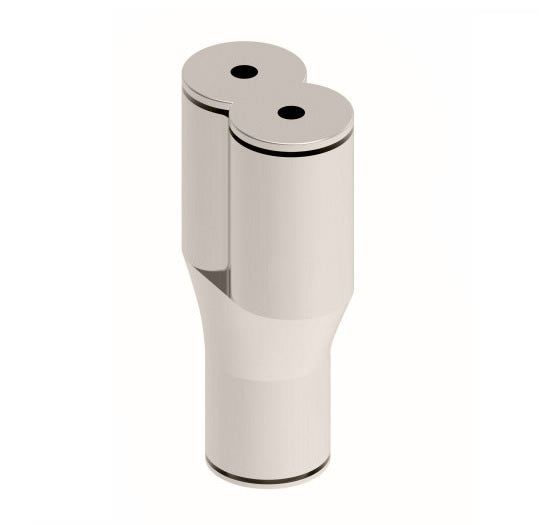

1107X10M by Danfoss | Metric Push to Connect Adapter | Union Y | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass

Name: 1107X10M by Danfoss | Metric Push to Connect Adapter | Union Y | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1107X10M Danfoss
Price: 28.3 USD
Availability: InStock

$28.30 - $28.30

$28.30

$28.30 - $28.30

$28.30

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Y

Quantity

Specifications for Variant SKU: 1107X10M Danfoss
Shape (Orientation):	Y
Ends Configuration:	10mm Push-to-Connect, 10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nickel Plated Brass
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	F	C	L	M
1107X4M	4mm	18.0mm	5.0mm	33.0mm	9.0mm
1107X6M	6mm	24.5mm	7.0mm	39.0mm	12.5mm
1107X8M	8mm	28.5mm	9.0mm	44.0mm	14.5mm
1107X10M	10mm	32.0mm	15.5mm	53.5mm	16.0mm
