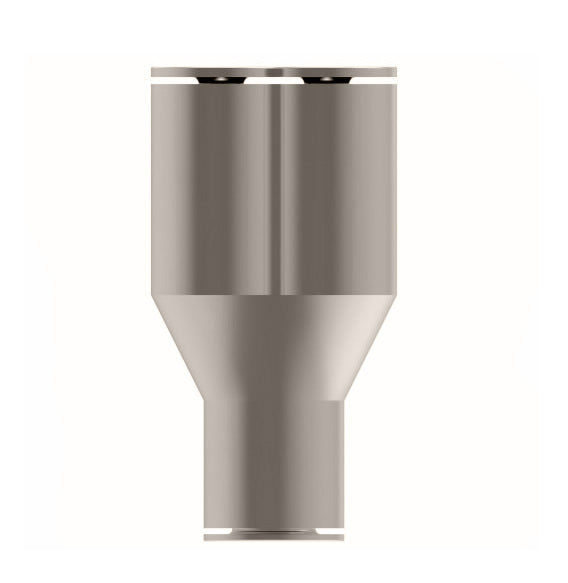

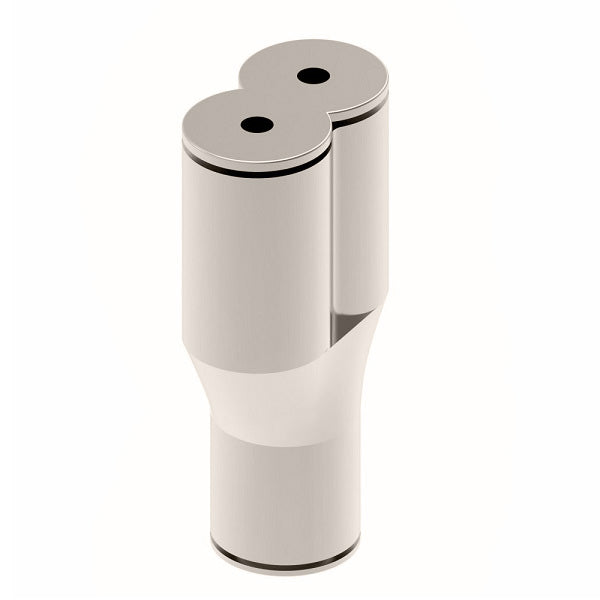

1107X4 by Danfoss | Push to Connect Adapter | Union Y | 1/4" Tube OD x 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass
1107X4 by Danfoss | Push to Connect Adapter | Union Y | 1/4" Tube OD x 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass
1107X4 by Danfoss | Push to Connect Adapter | Union Y | 1/4" Tube OD x 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass

1107X4 by Danfoss | Push to Connect Adapter | Union Y | 1/4" Tube OD x 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass

$30.27 - $30.27
$30.27
$30.27 - $30.27
$30.27

Aeroquip® by Danfoss
Push to Connect Adapter - Union Y
Push to Connect End x Push to Connect End x Push to Connect End
Specifications for Variant SKU: 1107X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number		 Tube O.D. C F L M
1107X2 1/8" 0.24" 0.83" 1.42" 0.39"
1107X4 1/4" 0.24" 0.96" 1.52" 0.49"
