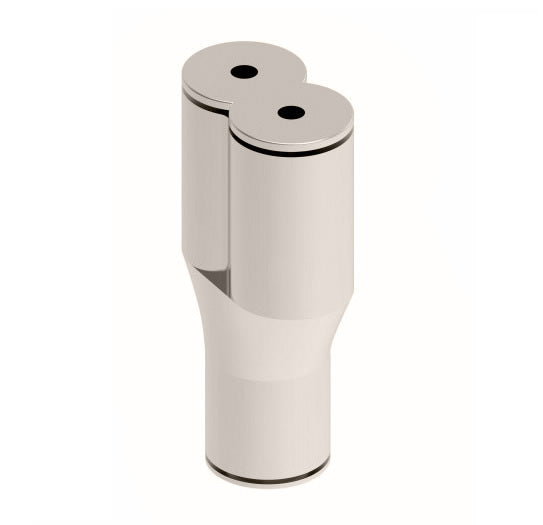

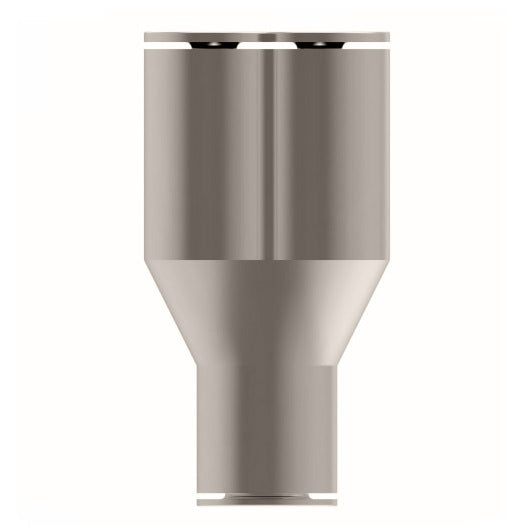

1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass
1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass
1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass
1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass

1107X6M by Danfoss | Metric Push to Connect Adapter | Union Y | 6mm Tube OD x 6mm Tube OD x 6mm Tube OD | Nickel Plated Brass

$17.22 - $17.22
$17.22
$17.22 - $17.22
$17.22

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Union Y
Specifications for Variant SKU: 1107X6M Danfoss
Shape (Orientation): Y
Ends Configuration: 6mm Push-to-Connect, 6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 F C L M
1107X4M 4mm 18.0mm 5.0mm 33.0mm 9.0mm
1107X6M 6mm 24.5mm 7.0mm 39.0mm 12.5mm
1107X8M 8mm 28.5mm 9.0mm 44.0mm 14.5mm
1107X10M 10mm 32.0mm 15.5mm 53.5mm 16.0mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
