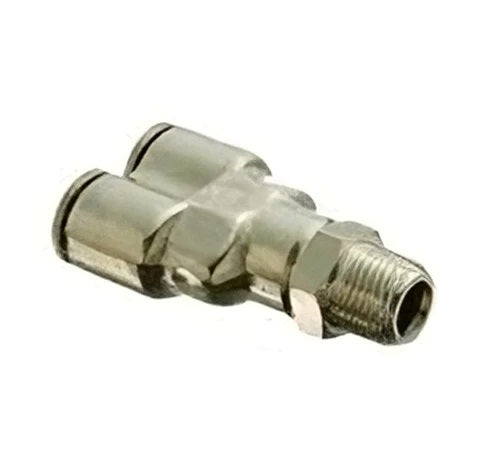

1108X4MX2PT by Danfoss | Metric Push to Connect Adapter | Swivel Male Y | 1/8" Male BSPT x 4mm Tube OD | Nickel Plated Brass

Name: 1108X4MX2PT by Danfoss | Metric Push to Connect Adapter | Swivel Male Y | 1/8" Male BSPT x 4mm Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1108X4MX2PT Danfoss
Price: 22.26 USD
Availability: InStock

$22.26 - $22.26

$22.26

$22.26 - $22.26

$22.26

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Y

Quantity

Specifications for Variant SKU: 1108X4MX2PT Danfoss
Shape (Orientation):	Y
Ends Configuration:	1/8in Male BSPT, 4mm Push-to-Connect
Material(s):	Nickel Plated Brass
Special Properties:	Swivel
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	Male BSPT Thread	F	H	M	L	SW (mm)
1108X4MX2PT	4mm	1/8"	18.0mm	5.5mm	9mm	38.0mm	12mm
1108X6MX2PT	6mm	1/8"	24.5mm	5.5mm	12.5mm	41.5mm	12mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).
