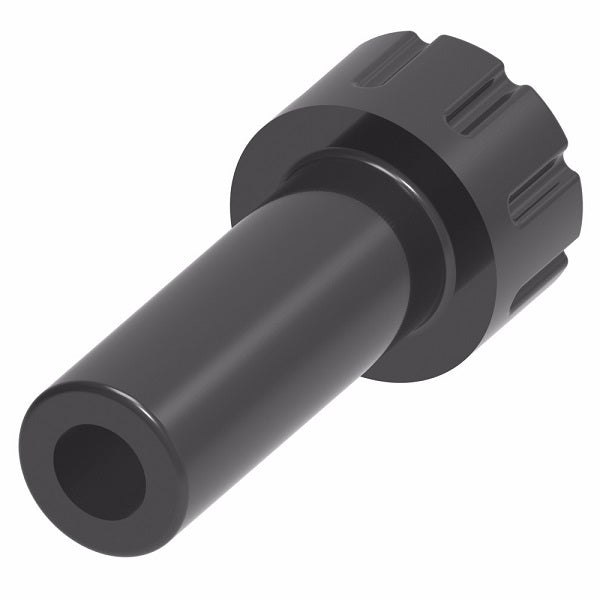

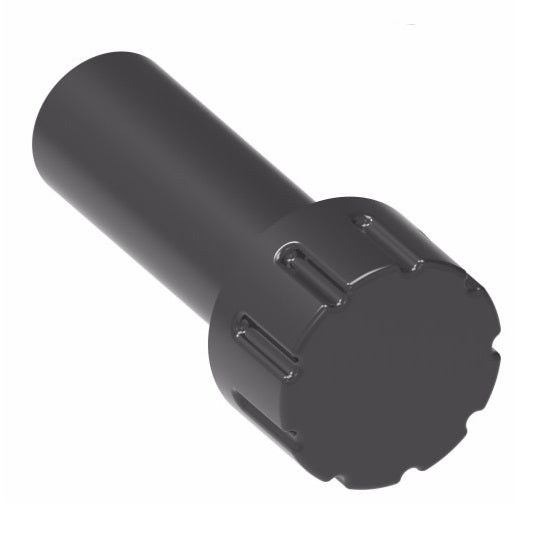

1129X6 by Danfoss | Push to Connect Adapter | Plug | 3/8" Tube OD | Plastic
1129X6 by Danfoss | Push to Connect Adapter | Plug | 3/8" Tube OD | Plastic
1129X6 by Danfoss | Push to Connect Adapter | Plug | 3/8" Tube OD | Plastic

1129X6 by Danfoss | Push to Connect Adapter | Plug | 3/8" Tube OD | Plastic

$4.46 - $4.46
$4.46
$4.46 - $4.46
$4.46

Aeroquip® by Danfoss
Push to Connect Adapter - Plug
Specifications for Variant SKU: 1129X6 Danfoss
Shape (Orientation): No Orientation
Material(s): Plastic
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
.
Plastic
Part Number 		G Tube O.D. L P T
1129X2 1/8" 1.06" 0.24" 0.79"
1129X2.5 5/32" 1.14" 0.32" 0.79"
1129X4 1/4" 1.24" 0.32" 0.89"
1129X5 5/16" 1.36" 0.47" 0.96"
1129X6 3/8" 1.46" 0.47" 1.06"
1129X8 1/2" 1.59" 0.63" 1.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
