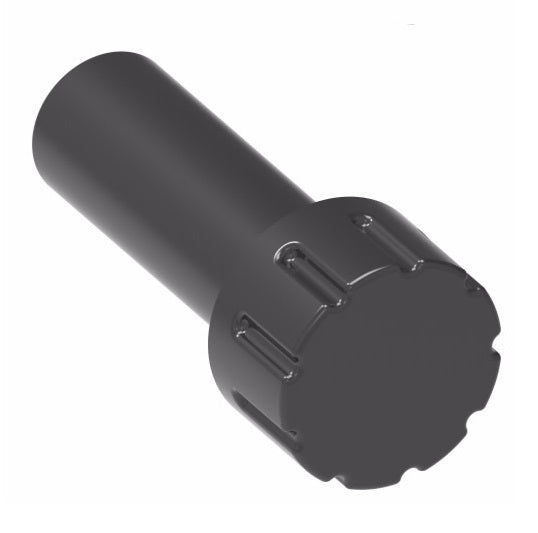

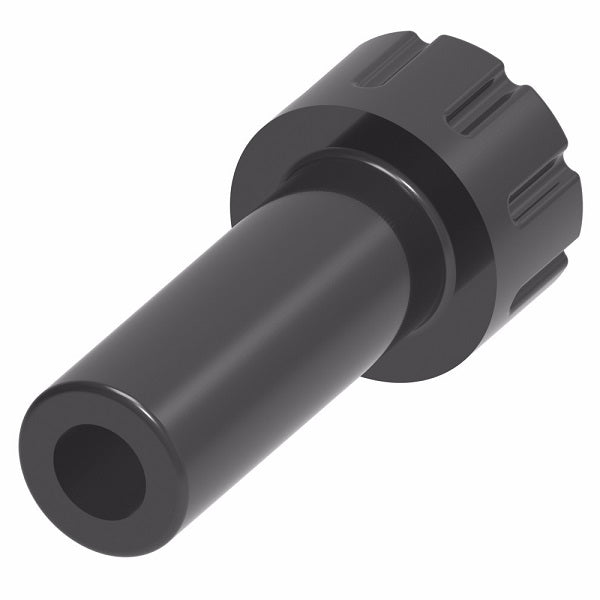

1129X4 by Danfoss | Push to Connect Adapter | Plug | 1/4" Tube OD | Plastic

Name: 1129X4 by Danfoss | Push to Connect Adapter | Plug | 1/4" Tube OD | Plastic
Brand: Danfoss/Eaton
SKU: 1129X4 Danfoss
Price: 3.09 USD
Availability: InStock

$3.09 - $3.09

$3.09

$3.09 - $3.09

$3.09

Aeroquip® by Danfoss
Push to Connect Adapter - Plug

Quantity

Specifications for Variant SKU: 1129X4 Danfoss
Shape (Orientation):	No Orientation
Material(s):	Plastic
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.

.


Plastic Part Number	G Tube O.D.	L	P	T
1129X2	1/8"	1.06"	0.24"	0.79"
1129X2.5	5/32"	1.14"	0.32"	0.79"
1129X4	1/4"	1.24"	0.32"	0.89"
1129X5	5/16"	1.36"	0.47"	0.96"
1129X6	3/8"	1.46"	0.47"	1.06"
1129X8	1/2"	1.59"	0.63"	1.12"
