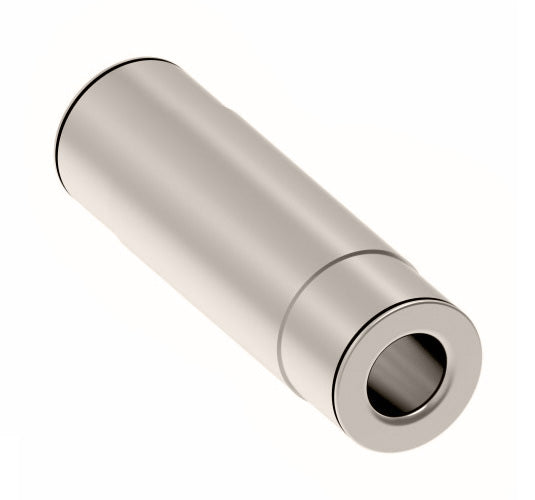

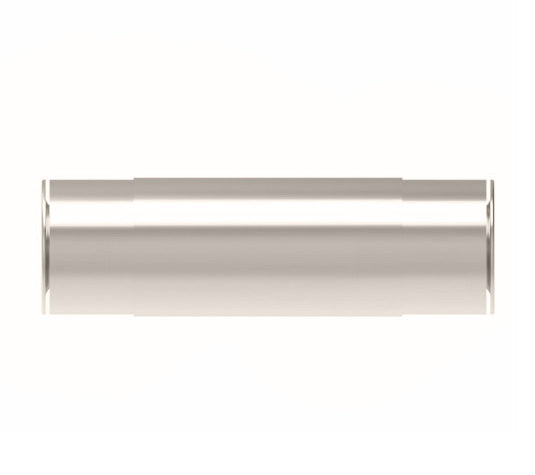

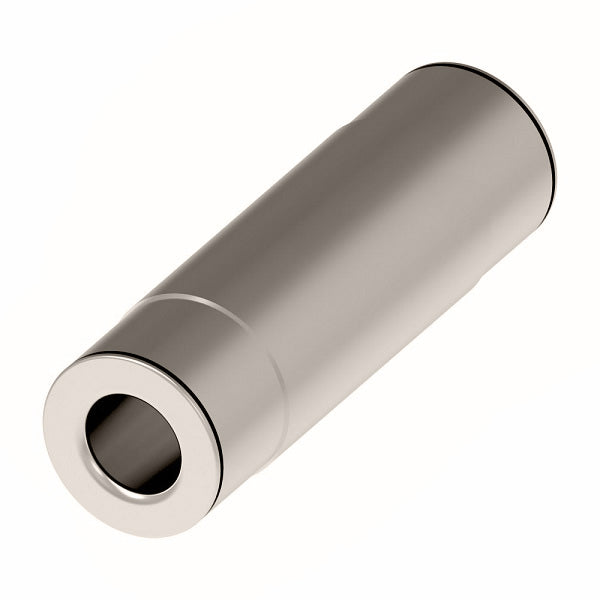

1162X4 by Danfoss | Push to Connect Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass

1162X4 by Danfoss | Push to Connect Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Nickel Plated Brass Pack of 10

$66.40 - $66.40

$66.40

$66.40 - $66.40

$66.40

Aeroquip® by Danfoss
Push to Connect Adapter - Union
Push to Connect End x Push to Connect End
Straight

Joins tubing.

Package Quantity: 10 Units

Specifications for Variant SKU: 1162X4 Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube O.D.	F	G	L	N
1162X2	1/8"	0.33"	0.35"	1.14"	0.55"
1162X2.5	5/32"	0.33"	0.35"	1.14"	0.55"
1162X4	1/4"	0.46"	0.47"	1.32"	0.64"
1162X5	5/16"	0.54"	0.55"	1.46"	0.69"
1162X6	3/8"	0.61"	0.66"	1.61"	0.79"
1162X8	1/2"	0.72"	0.75"	1.71"	0.83"
