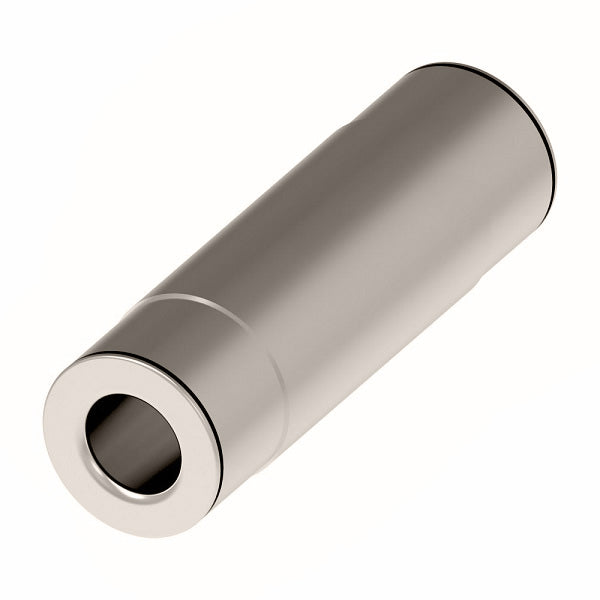

1162X5 by Danfoss | Push to Connect Adapter | Union | 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass
1162X5 by Danfoss | Push to Connect Adapter | Union | 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass
1162X5 by Danfoss | Push to Connect Adapter | Union | 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass
1162X5 by Danfoss | Push to Connect Adapter | Union | 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass

1162X5 by Danfoss | Push to Connect Adapter | Union | 5/16" Tube OD x 5/16" Tube OD | Nickel Plated Brass

$10.81 - $10.81
$10.81
$10.81 - $10.81
$10.81

Aeroquip® by Danfoss
Push to Connect Adapter - Union
Push to Connect End x Push to Connect End
Straight

Joins tubing.
Specifications for Variant SKU: 1162X5 Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/16in Tube Compression, 5/16in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. F G L N
1162X2 1/8" 0.33" 0.35" 1.14" 0.55"
1162X2.5 5/32" 0.33" 0.35" 1.14" 0.55"
1162X4 1/4" 0.46" 0.47" 1.32" 0.64"
1162X5 5/16" 0.54" 0.55" 1.46" 0.69"
1162X6 3/8" 0.61" 0.66" 1.61" 0.79"
1162X8 1/2" 0.72" 0.75" 1.71" 0.83"
