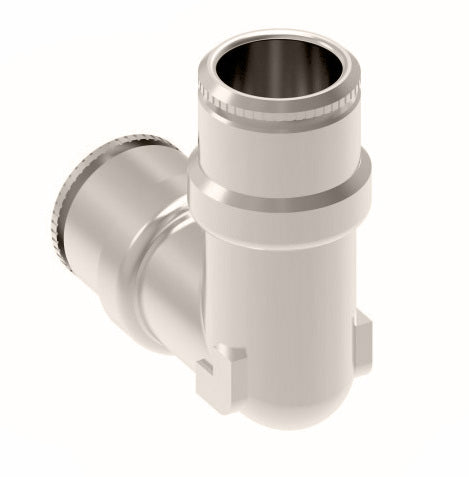

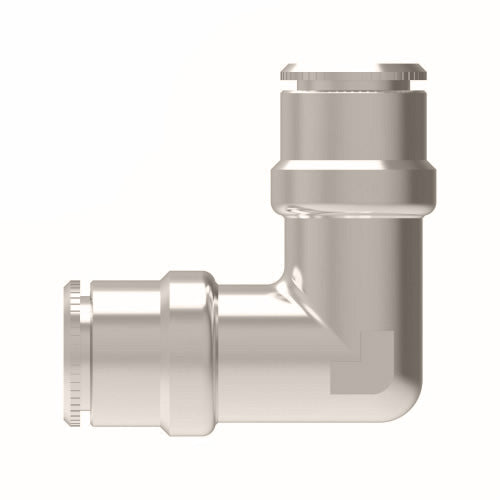

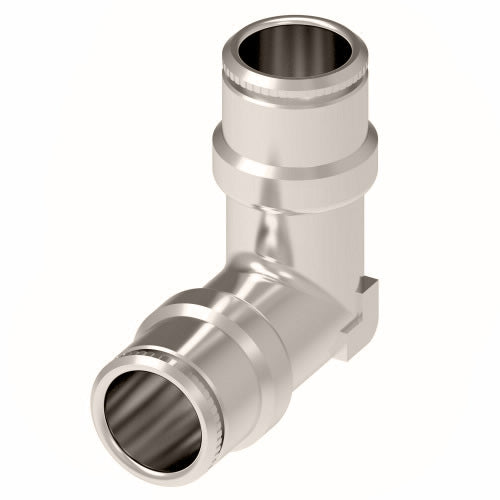

1165X6 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Nickel Plated Brass
1165X6 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Nickel Plated Brass
1165X6 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Nickel Plated Brass
1165X6 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Nickel Plated Brass

1165X6 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Nickel Plated Brass

$16.07 - $16.07
$16.07
$16.07 - $16.07
$16.07

Aeroquip® by Danfoss
Push to Connect Adapter - Union
Push to Connect End x Push to Connect End
90° Elbow
Specifications for Variant SKU: 1165X6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Tube Compression, 3/8in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. C F M SW
(mm)
1165X2 1/8" 0.14" 0.35" 0.69" 8
1165X2.5 5/32" 0.14" 0.35" 0.69" 8
1165X4 1/4" 0.16" 0.50" 0.79" 9
1165X5 5/16" 0.20" 0.55" 0.89" 11
1165X6 3/8" 0.26" 0.65" 1.04" 13
1165X8 1/2" 0.32" 0.77" 1.12" 15
