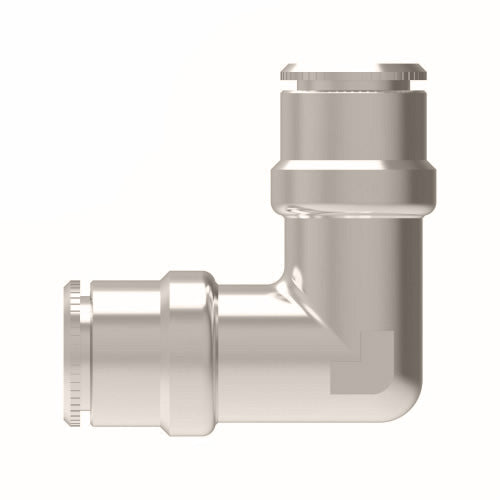

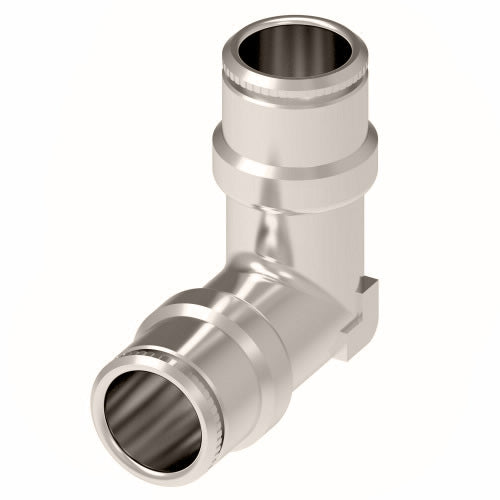

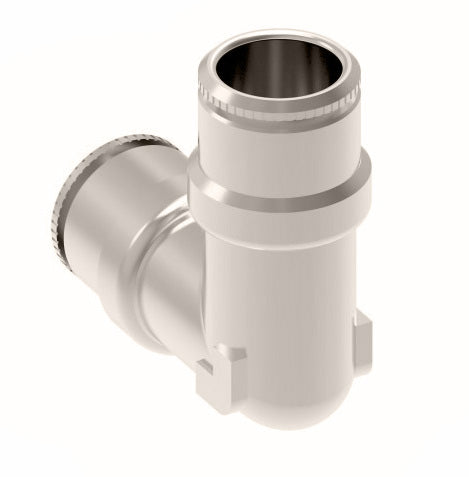

1165X8 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 1/2" Tube OD x 1/2" Tube OD | Nickel Plated Brass
1165X8 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 1/2" Tube OD x 1/2" Tube OD | Nickel Plated Brass
1165X8 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 1/2" Tube OD x 1/2" Tube OD | Nickel Plated Brass
1165X8 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 1/2" Tube OD x 1/2" Tube OD | Nickel Plated Brass

1165X8 by Danfoss | Push to Connect Adapter | Union 90° Elbow | 1/2" Tube OD x 1/2" Tube OD | Nickel Plated Brass

$20.09 - $20.09
$20.09
$20.09 - $20.09
$20.09

Aeroquip® by Danfoss
Push to Connect Adapter - Union
Push to Connect End x Push to Connect End
90° Elbow
Specifications for Variant SKU: 1165X8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. C F M SW
(mm)
1165X2 1/8" 0.14" 0.35" 0.69" 8
1165X2.5 5/32" 0.14" 0.35" 0.69" 8
1165X4 1/4" 0.16" 0.50" 0.79" 9
1165X5 5/16" 0.20" 0.55" 0.89" 11
1165X6 3/8" 0.26" 0.65" 1.04" 13
1165X8 1/2" 0.32" 0.77" 1.12" 15
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
