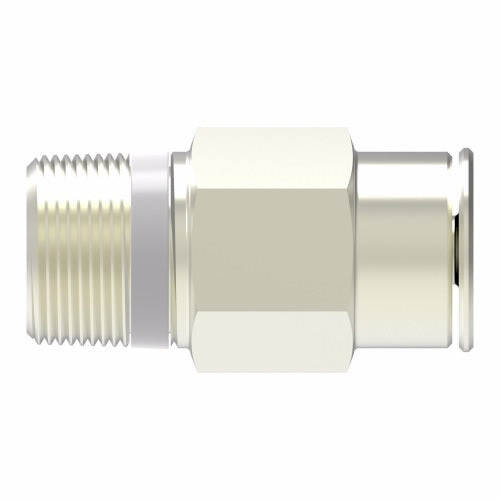

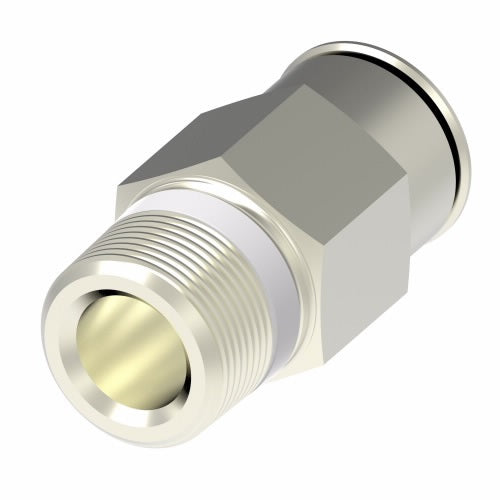

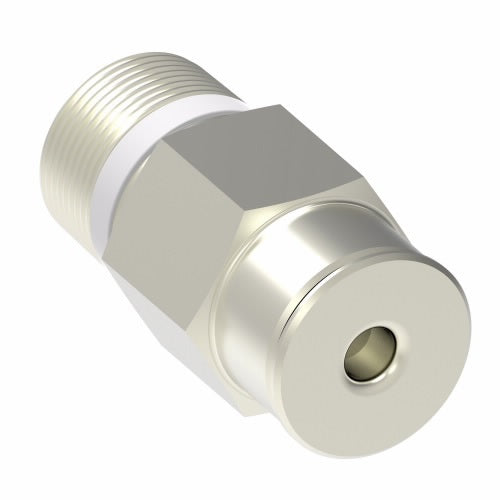

1168X12MX8PT by Danfoss | Metric Push to Connect Adapter | Male Connector (Universal BSPT/BSPP) | 12mm Tube OD x 1/2" Male BSPT | Nickel Plated Brass
1168X12MX8PT by Danfoss | Metric Push to Connect Adapter | Male Connector (Universal BSPT/BSPP) | 12mm Tube OD x 1/2" Male BSPT | Nickel Plated Brass
1168X12MX8PT by Danfoss | Metric Push to Connect Adapter | Male Connector (Universal BSPT/BSPP) | 12mm Tube OD x 1/2" Male BSPT | Nickel Plated Brass
1168X12MX8PT by Danfoss | Metric Push to Connect Adapter | Male Connector (Universal BSPT/BSPP) | 12mm Tube OD x 1/2" Male BSPT | Nickel Plated Brass

1168X12MX8PT by Danfoss | Metric Push to Connect Adapter | Male Connector (Universal BSPT/BSPP) | 12mm Tube OD x 1/2" Male BSPT | Nickel Plated Brass

$10.64 - $10.64
$10.64
$10.64 - $10.64
$10.64

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Male Connector (Universal BSPT/BSPP)
Specifications for Variant SKU: 1168X12MX8PT Danfoss
Shape (Orientation): Straight
Ends Configuration: 12mm Push-to-Connect, 1/2in Male BSPT
Material(s): Nickel Plated Brass
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT Thread C F G H L SW (mm) SW1 (mm)
1168X4MX2PT 4mm 1/8" 3.8mm 8.80mm 13.2mm 5.5mm 18.0mm 12mm 2.5mm
1168X4MX4PT 4mm 1/4" 6.0mm 8.80mm 15.2mm 7.0mm 19.5mm 14mm 2.5mm
1168X5MX2PT 5mm 1/8" 3.8mm 9.80mm 13.2mm 5.5mm 19.0mm 12mm 3.0mm
1168X5MX4PT 5mm 1/4" 5.5mm 9.8mm 15.2mm 7.0mm 20.0mm 14mm 3.0mm
1168X6MX2PT 6mm 1/8" 5.0mm 11.7mm 13.2mm 5.5mm 20.5mm 12mm 4.0mm
1168X6MX4PT 6mm 1/4" 5.5mm 11.7mm 15.2mm 7.0mm 21.0mm 14mm 4.0mm
1168X8MX2PT 8mm 1/8" 7.5mm 13.7mm 15.2mm 5.5mm 25.0mm 14mm 5.0mm
1168X8MX4PT 8mm 1/4" 6.5mm 13.7mm 15.2mm 7.0mm 24.0mm 14mm 6.0mm
1168X8MX6PT 8mm 3/8" 6.5mm 13.7mm 20.5mm 8.0mm 23.5mm 19mm 6.0mm
1168X10MX4PT 10mm 1/4" 8.5mm 16.3mm 18.5mm 7.0mm 28.5mm 17mm 7.0mm
1168X10MX6PT 10mm 3/8" 5.5mm 16.3mm 20.5mm 8.0mm 25.5mm 19mm 8.0mm
1168X10MX8PT 10mm 1/2" 5.0mm 16.3mm 24.5mm 9.0mm 25.0mm 22mm 8.0mm
1168X12MX4PT 12mm 1/4" 10.5mm 18.3mm 20.5mm 7.0mm 31.5mm 19mm 7.0mm
1168X12MX6PT 12mm 3/8" 9.5mm 18.3mm 20.5mm 8.0mm 30.5mm 19mm 9.0mm
1168X12MX8PT 12mm 1/2" 6.0mm 18.3mm 24.5mm 9.0mm 27.0mm 22mm 10.0mm
