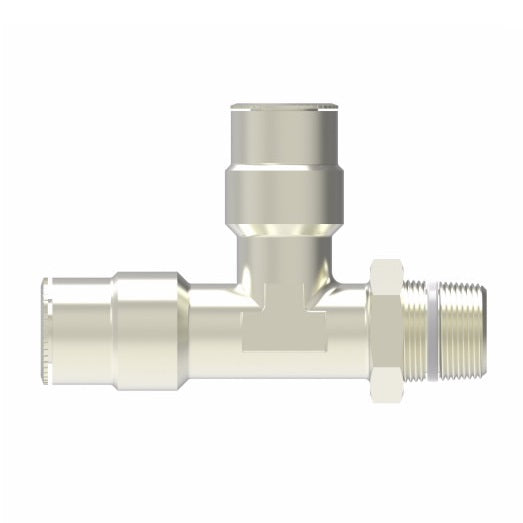

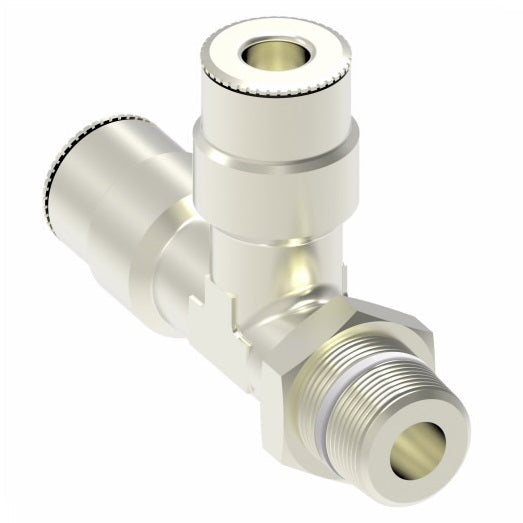

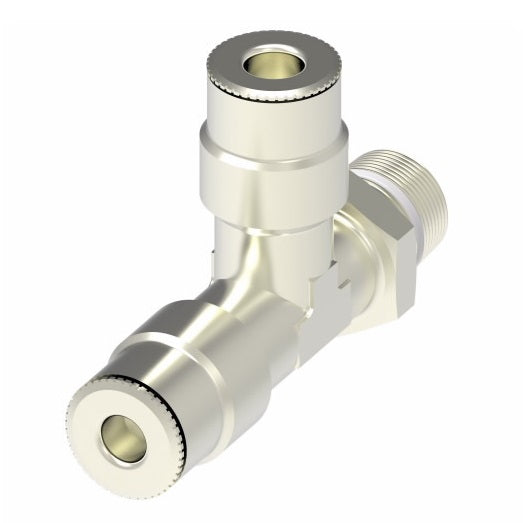

1171PX2S by Danfoss | Push to Connect Plus Adapter | Swivel Male Run Tee | 1/8" Tube OD x 1/8" Male Pipe x 1/8" Tube OD | Nickel Plated Brass

$10.72

Aeroquip® by Danfoss
Push to Connect Plus Adapter - Swivel Male Run Tee

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1171PX2S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/8in Push-to-Connect, 1/8in Male NPT, 1/8in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Overview:
  • Danfoss is proud to announce three design changes to Push>Connect products. The introduction of a low profile, sure-seal design for male NPTF threaded fittings is here. Also, an improved collet design will allow use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing. Lastly, the male swivel design provides greater strength and stability.
Advantages:
  • Perfect Thread Seal: A captured Teflon® ring around the base of the hex shoulder, seals similar to a reusable (SAE type) seal eliminates thread sealant and loose particles associated with thread sealant.
  • Lower Profile: Push>Connect Plus has a lower profile for those tight places. A shorter thread design eliminates exposed threads where dirt and bacteria can collect (ideal for food processing and hygienic applications).
  • More Versatility: The new brass collet is designed for use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing.
  • Super-Quick Installations: New short thread length means fewer turns and super-quick installations.
  • Improved Swivel Design: Strength and stability have been engineered into the new male swivel.
Used With:
  • Nylon, 90A durometer Polyurethane, Polyethylene, PVC tubing
Material:
  • Brass, Nickel Plated
Nickel Plated Brass
Part Number
Tube O.D. Male Pipe
Thread
C E F H I M SW
mm
SW1
mm
1171PX2S 1/8" 1/8" 0.14" 0.59" 0.35" 0.20" 1.46" 0.69" 8mm 12mm
1171PX2.5S 5/32" 1/8" 0.14" 0.59" 0.35" 0.20" 1.46" 0.69" 8mm 12mm
1171PX4S 1/4" 1/8" 0.16" 0.63" 0.50" 0.20" 1.61" 0.89" 9mm 12mm
1171PX4X4S 1/4" 1/4" 0.16" 0.65" 0.50" 0.26" 1.70" 0.79" 9mm 14mm
1171PX4X6S 1/4" 3/8" 0.16" 0.65" 0.50" 0.30" 1.73" 0.79" 9mm 19mm
1171PX6S 3/8" 1/4" 0.26" 0.77" 0.65" 0.26" 2.07" 1.04" 13mm 14mm
