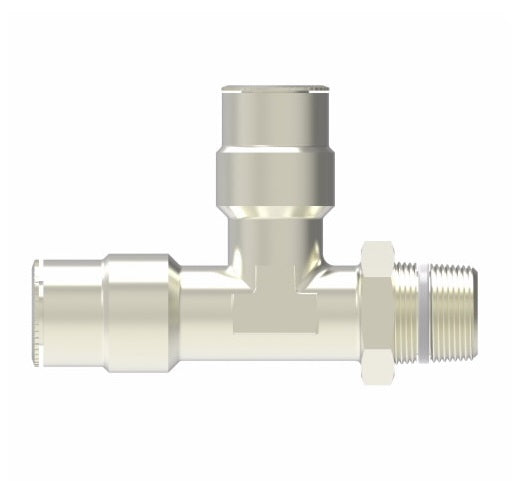

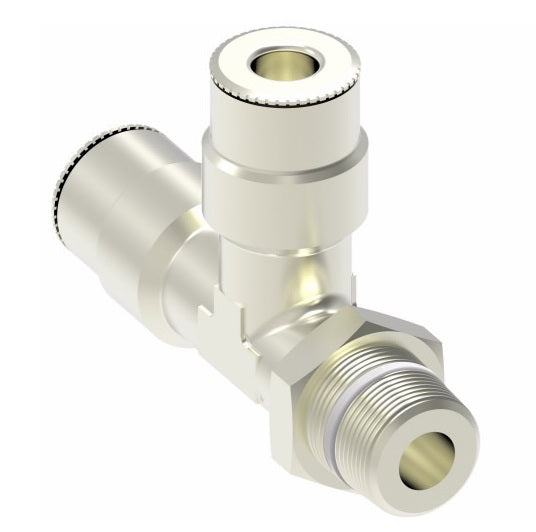

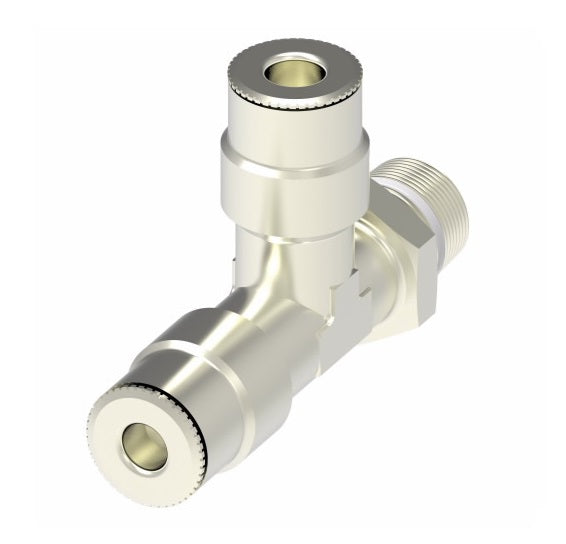

1171X2.5S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/8" Male NPTF x 5/32" Tube OD | Nickel Plated Brass
1171X2.5S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/8" Male NPTF x 5/32" Tube OD | Nickel Plated Brass
1171X2.5S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/8" Male NPTF x 5/32" Tube OD | Nickel Plated Brass
1171X2.5S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/8" Male NPTF x 5/32" Tube OD | Nickel Plated Brass

1171X2.5S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/8" Male NPTF x 5/32" Tube OD | Nickel Plated Brass

$15.52 - $15.52
$15.52
$15.52 - $15.52
$15.52

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Run Tee
Specifications for Variant SKU: 1171X2.5S Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/32in Push-to-Connect, 1/8in Male NPTF, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread E F H L M SW
(mm)		 SW1
(mm)
1171X2S 1/8" 1/8" 0.65" 0.35" 0.32" 1.54" 0.69" 8 12
1171X2.5AS 5/32" 10-32* 0.53" 0.39" 0.18" 1.50" 0.79" 9 8
1171X2.5S 5/32" 1/8" 0.65" 0.35" 0.32" 1.54" 0.69" 8 12
1171X2.5X4S 5/32" 1/4" 0.69" 0.35" 0.26" 1.63" 0.69" 8 14
1171X4S 1/4" 1/8" 0.67" 0.46" 0.49" 1.65" 0.79" 9 12
1171X4X4S 1/4" 1/4" 0.71" 0.50" 0.32" 1.75" 0.79" 9 14
1171X4X6S 1/4" 3/8" 0.69" 0.50" 0.47" 1.77" 0.79" 9 19
1171X6S 3/8" 1/4" 0.85" 0.65" 0.47" 2.15" 1.04" 13 14
1171X6X6S 3/8" 3/8" 0.83" 0.65" 0.47" 2.17" 1.04" 13 19
1171X6X8S 3/8" 1/2" 0.91" 0.65" 0.61" 2.28" 1.04" 13 22
1171X8X4S 1/2" 1/4" 0.91" 0.79" 0.47" 2.29" 1.12" 15 13
1171X8S 1/2" 3/8" 0.87" 0.79" 0.47" 2.29" 1.12" 15 19
1171X8X8S 1/2" 1/2" 0.95" 0.79" 0.61" 2.40" 1.12" 15 22

* UNF Thread. Seals with nylon washer (included).
