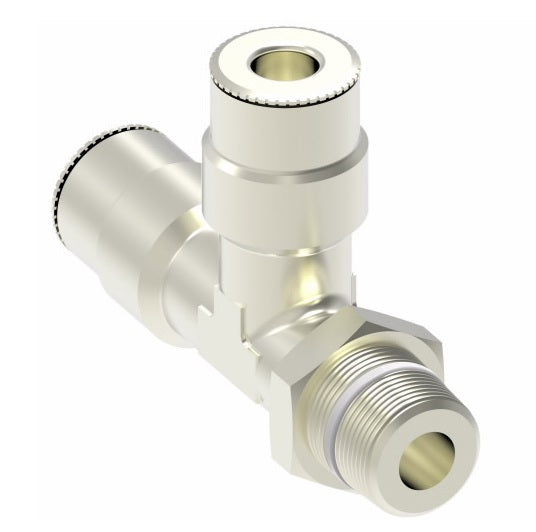

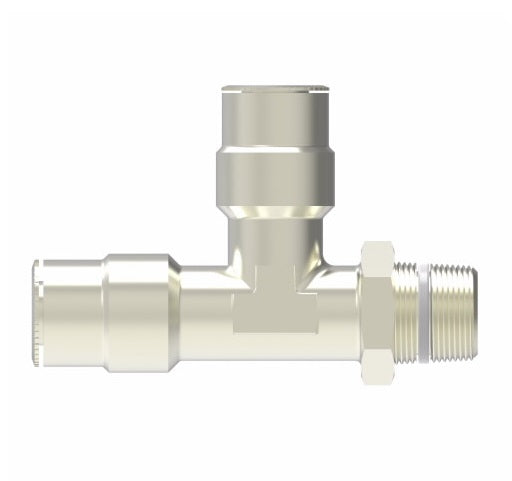

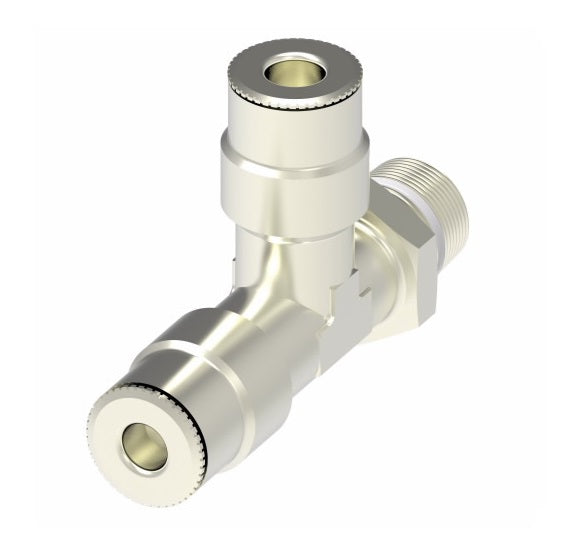

1171X2.5X4S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/4" Male UNF x 5/32" Tube OD | Nickel Plated Brass

1171X2.5X4S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/4" Male UNF x 5/32" Tube OD | Nickel Plated Brass

Name: 1171X2.5X4S by Danfoss | Push to Connect Adapter | Swivel Male Run Tee | 5/32" Tube OD x 1/4" Male UNF x 5/32" Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1171X2.5X4S Danfoss
Price: 11.54 USD
Availability: InStock

$11.54 - $11.54

$11.54

$11.54 - $11.54

$11.54

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Run Tee

Specifications for Variant SKU: 1171X2.5X4S Danfoss
Shape (Orientation):	Tee
Material(s):	Nickel Plated Brass
Special Properties:	Swivel
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube O.D.	Male Pipe Thread	E	F	H	L	M	SW (mm)	SW1 (mm)
1171X2S	1/8"	1/8"	0.65"	0.35"	0.32"	1.54"	0.69"	8	12
1171X2.5AS	5/32"	10-32*	0.53"	0.39"	0.18"	1.50"	0.79"	9	8
1171X2.5S	5/32"	1/8"	0.65"	0.35"	0.32"	1.54"	0.69"	8	12
1171X2.5X4S	5/32"	1/4"	0.69"	0.35"	0.26"	1.63"	0.69"	8	14
1171X4S	1/4"	1/8"	0.67"	0.46"	0.49"	1.65"	0.79"	9	12
1171X4X4S	1/4"	1/4"	0.71"	0.50"	0.32"	1.75"	0.79"	9	14
1171X4X6S	1/4"	3/8"	0.69"	0.50"	0.47"	1.77"	0.79"	9	19
1171X6S	3/8"	1/4"	0.85"	0.65"	0.47"	2.15"	1.04"	13	14
1171X6X6S	3/8"	3/8"	0.83"	0.65"	0.47"	2.17"	1.04"	13	19
1171X6X8S	3/8"	1/2"	0.91"	0.65"	0.61"	2.28"	1.04"	13	22
1171X8X4S	1/2"	1/4"	0.91"	0.79"	0.47"	2.29"	1.12"	15	13
1171X8S	1/2"	3/8"	0.87"	0.79"	0.47"	2.29"	1.12"	15	19
1171X8X8S	1/2"	1/2"	0.95"	0.79"	0.61"	2.40"	1.12"	15	22

* UNF Thread. Seals with nylon washer (included).
