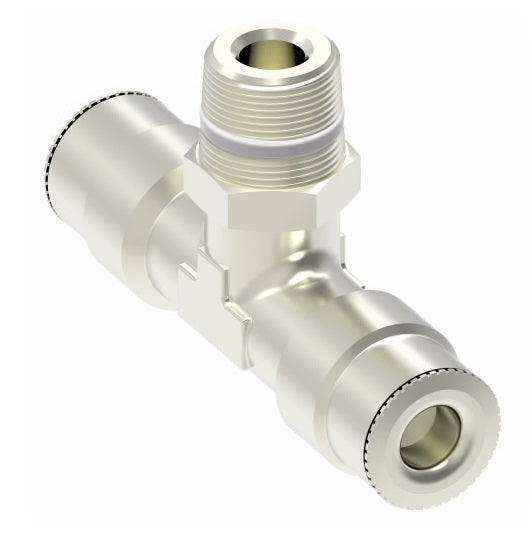

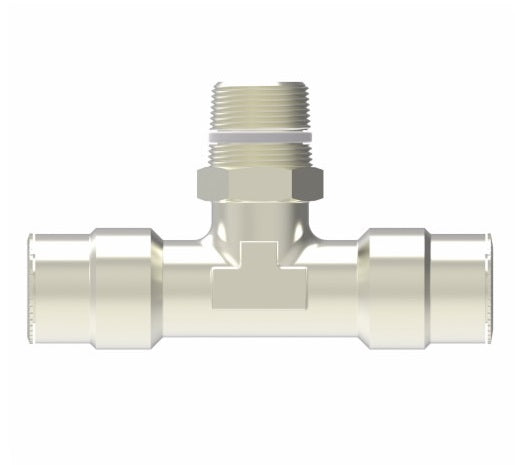

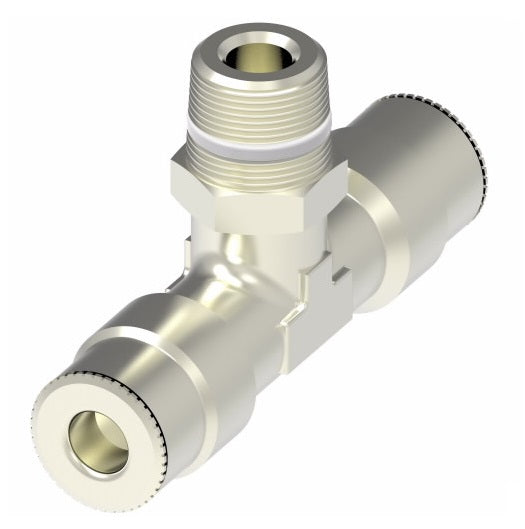

1172X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 4mm Tube OD x 4mm Tube OD x 1/8" Male BSPT Swivel | Nickel Plated Brass

Name: 1172X4MX2PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 4mm Tube OD x 4mm Tube OD x 1/8" Male BSPT Swivel | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1172X4MX2PTS Danfoss
Price: 14.29 USD
Availability: InStock

$14.29

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Branch Tee (Universal BSPT/BSPP)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1172X4MX2PTS Danfoss
Shape (Orientation):	Tee
Ends Configuration:	4mm Push-to-Connect X 4mm Push-to-Connect X 1/8in Male BSPT X Some Ends Match
Material(s):	Nickel Plated Brass
Special Properties:	Swivel
Compatible with the following Series:	MTP160 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
MTP160 nylon tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
-40°F to 200°F (-40°C to 93°C).

Nominal Size	2	4	5MM	6	8
Thread
MM (Metric Screw Thread)			M5x.8
BSPT	1/8 (2PT)	1/4 (4PT)		3/8 (6PT)	1/2 (8PT)
BSPP	1/8 (2PP)	1/4 (4PP)		3/8 (6PP)	1/2


Nickel Plated Brass Part Number	Tube OD (mm)	Male BSPT Thread	C	E	F	H	I	SW (mm)	SW1 (mm)
1172X4MX2PTS	4mm	1/8"	3.5	14.5	9.0	5.5	35	8	12
1172X5MX2PTS	5mm	1/8"	6.0	14.5	11.0	5.5	42	9	12
1172X6MX2PTS	6mm	1/8"	4.0	15.0	12.7	5.5	40	9	12
1172X6MX4PTS	6mm	1/4"	4.0	15.0	12.7	7.0	40	9	14
1172X8MX2PTS	8mm	1/8"	5.0	16.0	14.0	5.5	45	11	12
1172X8MX4PTS	8mm	1/4"	5.0	16.0	14.0	7.0	45	11	14
1172X8MX6PTS	8mm	3/8"	5.0	16.5	14.0	8.0	45	11	19
1172X10MX4PTS	10mm	1/4"	6.5	18.5	16.5	7.0	53	13	14
172x10Mx6PTS	10mm	3/8"	6.5	19.0	16.5	8.0	53	13	14
1172X12MX4PTS	12mm	1/4"	7.5	20.0	19.5	7.0	57	15	17
1172X12MX6PTS	12mm	3/8"	7.5	20.0	19.5	8.0	57	15	19
1172X12MX8PTS	12mm	1/2"	7.5	20.5	19.5	9.0	57	15	22
