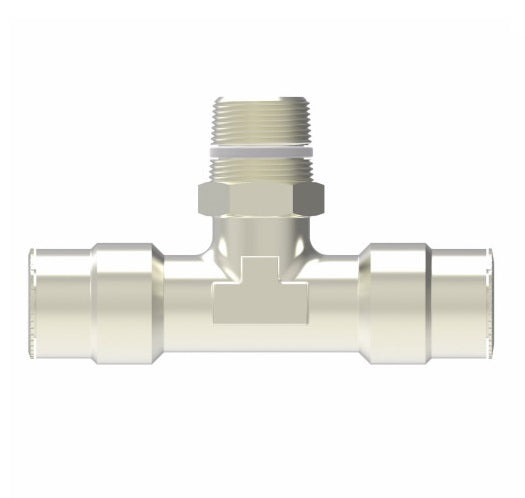

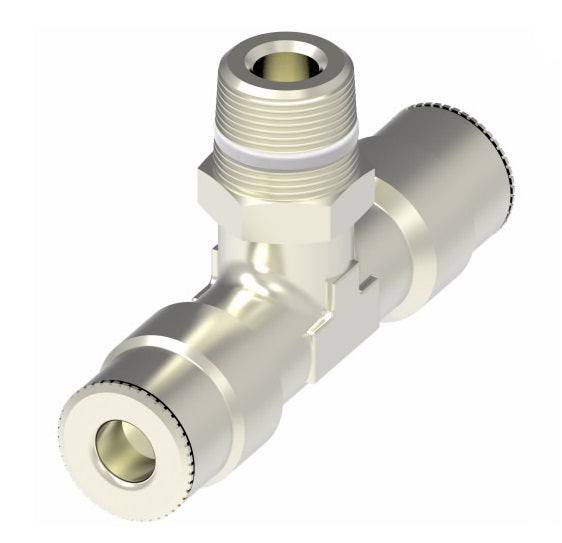

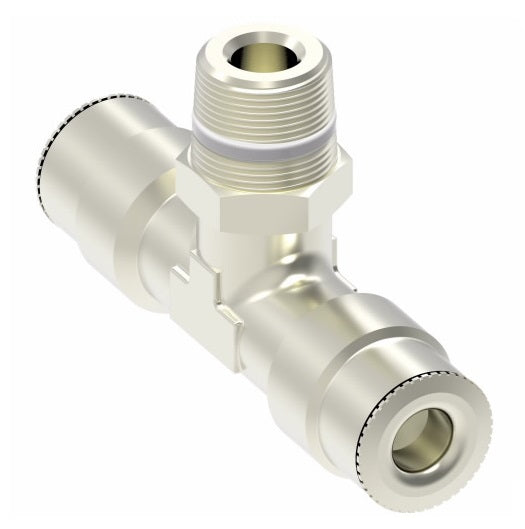

1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass
1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass
1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass
1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass

1172X4MX5MMS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee | 4mm Tube OD x 4mm Tube OD x M5 Male Metric Swivel | Nickel Plated Brass

$34.65 - $34.65
$34.65
$34.65 - $34.65
$34.65

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Branch Tee
Specifications for Variant SKU: 1172X4MX5MMS Danfoss
Shape (Orientation): Tee
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male Metric
Thread		 C E F H I SW
(mm)		 SW1
(mm)
1172X4MX5MMS 4mm M5* 3.5mm 14.5mm 9.0mm 4.0mm 35mm 8mm 8mm

* M5x0.8 metric screw thread. Seals with nylon washer (included).
