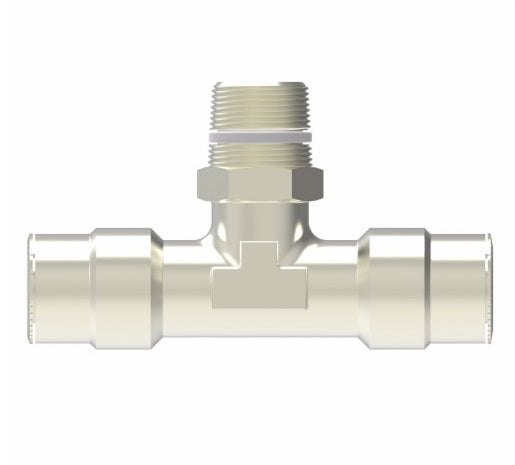

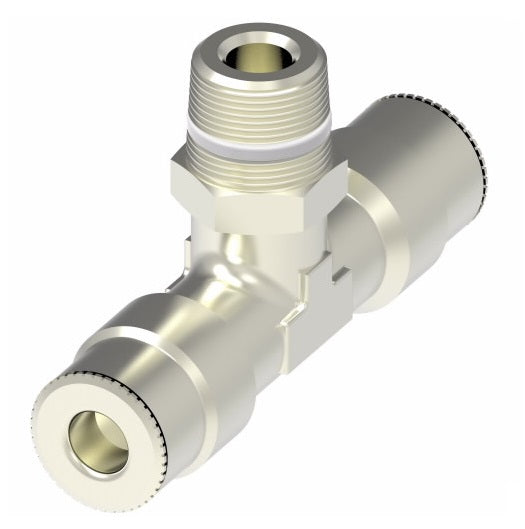

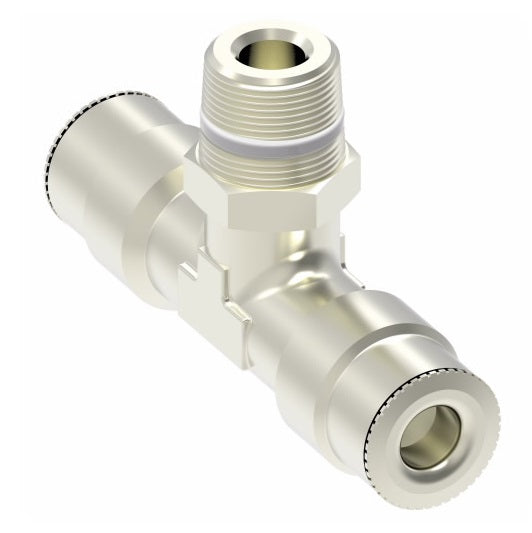

1172X6MX4PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 6mm Tube OD x 6mm Tube OD x 1/4" Male BSPT Swivel | Nickel Plated Brass

Original price $14.83 - Original price $14.83
Original price
$14.83
$14.83 - $14.83
Current price $14.83

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Branch Tee (Universal BSPT/BSPP)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1172X6MX4PTS Danfoss
Shape (Orientation): Tee
Ends Configuration: 6mm Push-to-Connect, 6mm Push-to-Connect, 1/4in Male BSPT, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)
    M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number
Tube OD
(mm)
Male BSPT
Thread
C E F H I SW
(mm)
SW1
(mm)
1172X4MX2PTS 4mm 1/8" 3.5 14.5 9.0 5.5 35 8 12
1172X5MX2PTS 5mm 1/8" 6.0 14.5 11.0 5.5 42 9 12
1172X6MX2PTS 6mm 1/8" 4.0 15.0 12.7 5.5 40 9 12
1172X6MX4PTS 6mm 1/4" 4.0 15.0 12.7 7.0 40 9 14
1172X8MX2PTS 8mm 1/8" 5.0 16.0 14.0 5.5 45 11 12
1172X8MX4PTS 8mm 1/4" 5.0 16.0 14.0 7.0 45 11 14
1172X8MX6PTS 8mm 3/8" 5.0 16.5 14.0 8.0 45 11 19
1172X10MX4PTS 10mm 1/4" 6.5 18.5 16.5 7.0 53 13 14
172x10Mx6PTS 10mm 3/8" 6.5 19.0 16.5 8.0 53 13 14
1172X12MX4PTS 12mm 1/4" 7.5 20.0 19.5 7.0 57 15 17
1172X12MX6PTS 12mm 3/8" 7.5 20.0 19.5 8.0 57 15 19
1172X12MX8PTS 12mm 1/2" 7.5 20.5 19.5 9.0 57 15 22
