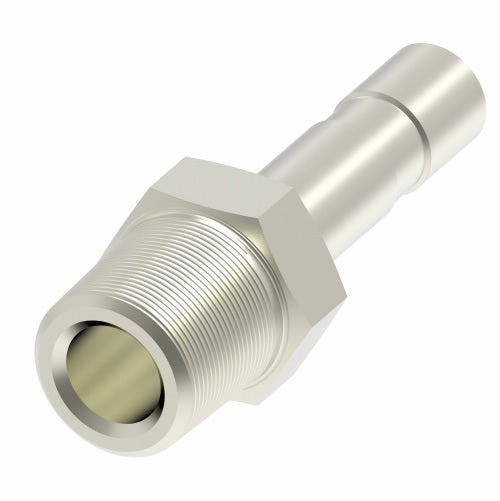

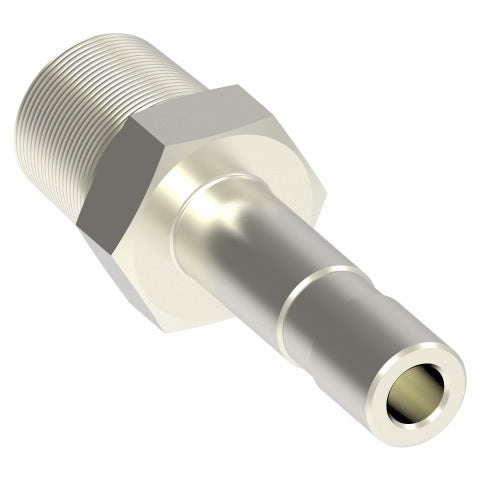

1180X2.5 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 5/32" Tube Insert | Nickel Plated Brass
1180X2.5 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 5/32" Tube Insert | Nickel Plated Brass
1180X2.5 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 5/32" Tube Insert | Nickel Plated Brass
1180X2.5 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 5/32" Tube Insert | Nickel Plated Brass

1180X2.5 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 5/32" Tube Insert | Nickel Plated Brass

$5.28 - $5.28
$5.28
$5.28 - $5.28
$5.28

Aeroquip® by Danfoss
Push to Connect Adapter - Stem Adapter
Male Pipe x Tube Insert
Straight
Specifications for Variant SKU: 1180X2.5 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 5/32in Tube Stem
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe H T L SW
(mm)
1180X2 1/8" 1/8" 0.37" 0.65" 1.20" 12
1180X2X4 1/8" 1/4" 0.51" 0.65" 1.36" 14
1180X2.5 5/32" 1/8" 0.37" 0.65" 1.20" 12
1180X2.5X4 5/32" 1/4" 0.51" 0.65" 1.36" 14"
1180X4 1/4" 1/8" 0.37" 0.71" 1.26" 12
1180X4X4 1/4" 1/4" 0.51" 0.71" 1.42" 14
1180X5 5/16" 1/8" 0.37" 0.81" 1.36" 12
1180X5X4 5/16" 1/4" 0.51" 0.81" 1.34" 14"
1180X6 3/8" 1/4" 0.51" 0.91" 1.61" 17"
1180X6X6 3/8" 3/8" 0.51" 0.91" 1.61" 19"
1180X8X8 1/2" 1/2" 0.71" 0.94" 1.87" 22"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
