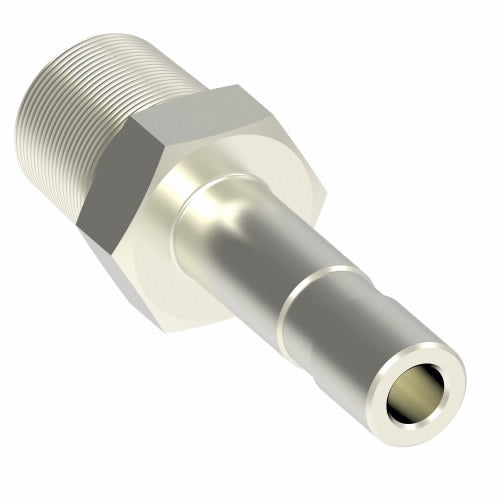

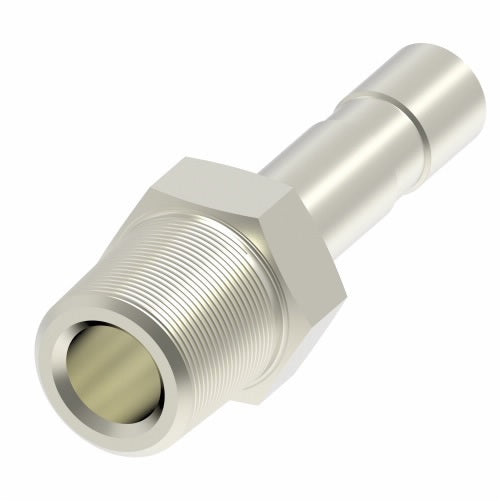

1180X2 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/8" Tube Insert | Nickel Plated Brass
1180X2 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/8" Tube Insert | Nickel Plated Brass
1180X2 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/8" Tube Insert | Nickel Plated Brass
1180X2 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/8" Tube Insert | Nickel Plated Brass

1180X2 by Danfoss | Push to Connect Adapter | Stem Adapter | 1/8" Male Pipe x 1/8" Tube Insert | Nickel Plated Brass

$3.52 - $3.52
$3.52
$3.52 - $3.52
$3.52

Aeroquip® by Danfoss
Push to Connect Adapter - Stem Adapter
Male Pipe x Tube Insert
Straight
Specifications for Variant SKU: 1180X2 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/8in Tube Stem
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe H T L SW
(mm)
1180X2 1/8" 1/8" 0.37" 0.65" 1.20" 12
1180X2X4 1/8" 1/4" 0.51" 0.65" 1.36" 14
1180X2.5 5/32" 1/8" 0.37" 0.65" 1.20" 12
1180X2.5X4 5/32" 1/4" 0.51" 0.65" 1.36" 14"
1180X4 1/4" 1/8" 0.37" 0.71" 1.26" 12
1180X4X4 1/4" 1/4" 0.51" 0.71" 1.42" 14
1180X5 5/16" 1/8" 0.37" 0.81" 1.36" 12
1180X5X4 5/16" 1/4" 0.51" 0.81" 1.34" 14"
1180X6 3/8" 1/4" 0.51" 0.91" 1.61" 17"
1180X6X6 3/8" 3/8" 0.51" 0.91" 1.61" 19"
1180X8X8 1/2" 1/2" 0.71" 0.94" 1.87" 22"
