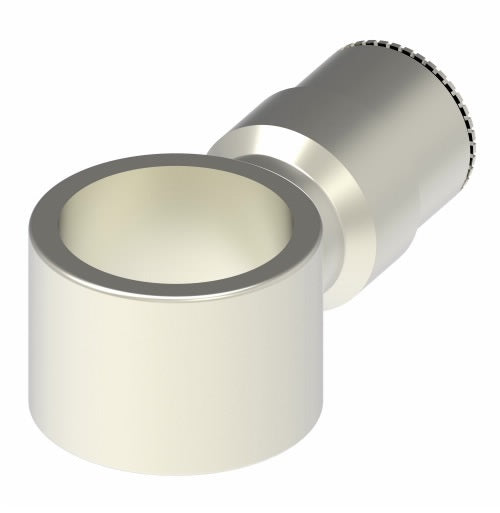

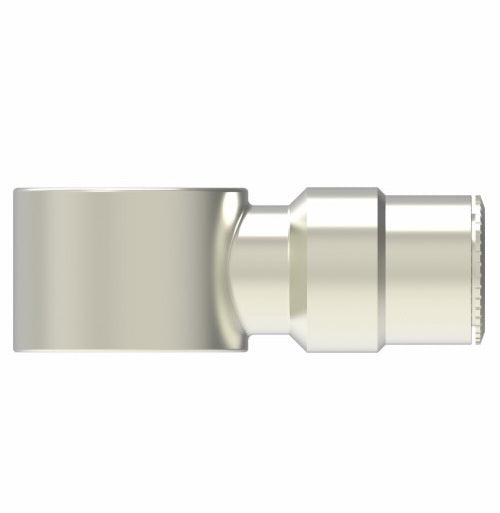

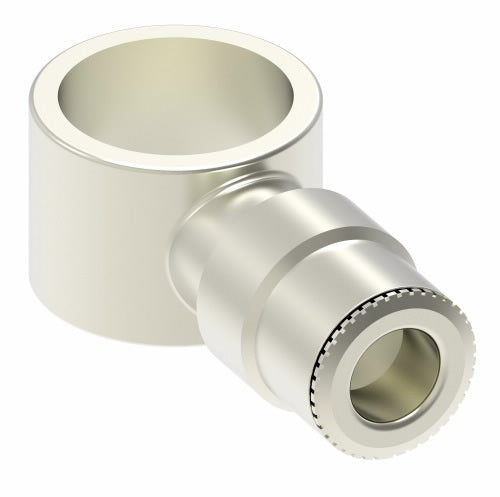

1181X4X4 by Danfoss | Push to Connect Adapter | Banjo | 1/4" Tube OD | Nickel Plated Brass

1181X4X4 by Danfoss | Push to Connect Adapter | Banjo | 1/4" Tube OD | Nickel Plated Brass

Name: 1181X4X4 by Danfoss | Push to Connect Adapter | Banjo | 1/4" Tube OD | Nickel Plated Brass
Brand: Danfoss/Eaton
SKU: 1181X4X4 Danfoss
Price: 15.14 USD
Availability: InStock

$15.14 - $15.14

$15.14

$15.14 - $15.14

$15.14

Aeroquip® by Danfoss
Push to Connect Adapter - Banjo

Quantity

Specifications for Variant SKU: 1181X4X4 Danfoss
Shape (Orientation):	Straight
Material(s):	Nickel Plated Brass
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube OD A	C	F	M	O	V	W
1181X2.5A	5/32"	0.20"	0.35"	0.75"	0.35"	0.20"	0.35"
1181X4X2	1/4"	0.35"	0.50"	0.98"	0.57"	0.39"	0.55"
1181X4X4	1/4"	0.43"	0.50"	1.06"	0.57"	0.52"	0.71"
