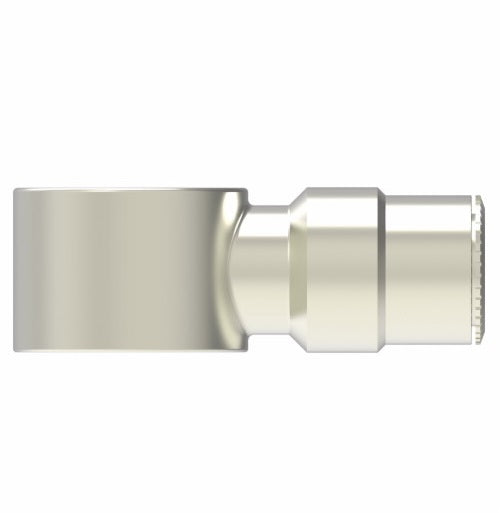

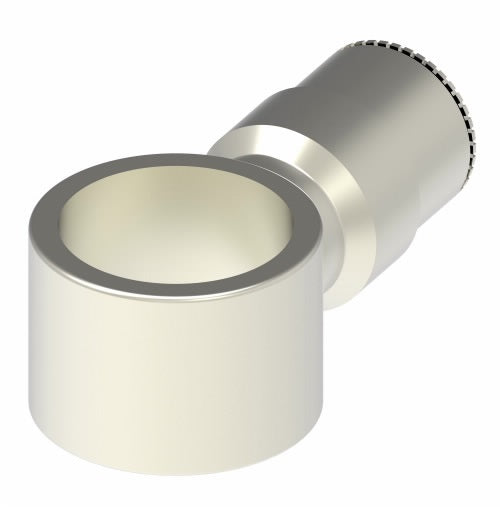

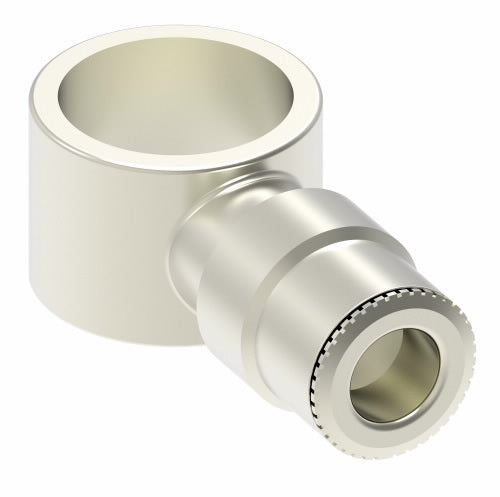

1181X2.5A by Danfoss | Push to Connect Adapter | Banjo | 5/32" Tube OD | Nickel Plated Brass

1181X2.5A by Danfoss | Push to Connect Adapter | Banjo | 5/32" Tube OD | Nickel Plated Brass

$6.16 - $6.16
$6.16
$6.16 - $6.16
$6.16

Aeroquip® by Danfoss
Push to Connect Adapter - Banjo
Specifications for Variant SKU: 1181X2.5A Danfoss
Shape (Orientation): Straight
Material(s): Nickel Plated Brass
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube OD
A		 C F M O V W
1181X2.5A 5/32" 0.20" 0.35" 0.75" 0.35" 0.20" 0.35"
1181X4X2 1/4" 0.35" 0.50" 0.98" 0.57" 0.39" 0.55"
1181X4X4 1/4" 0.43" 0.50" 1.06" 0.57" 0.52" 0.71"
