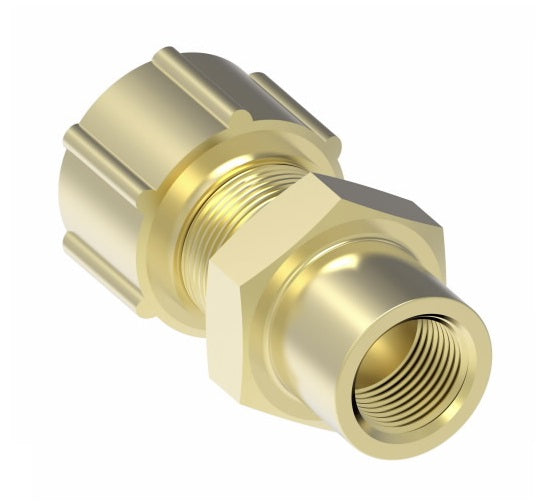

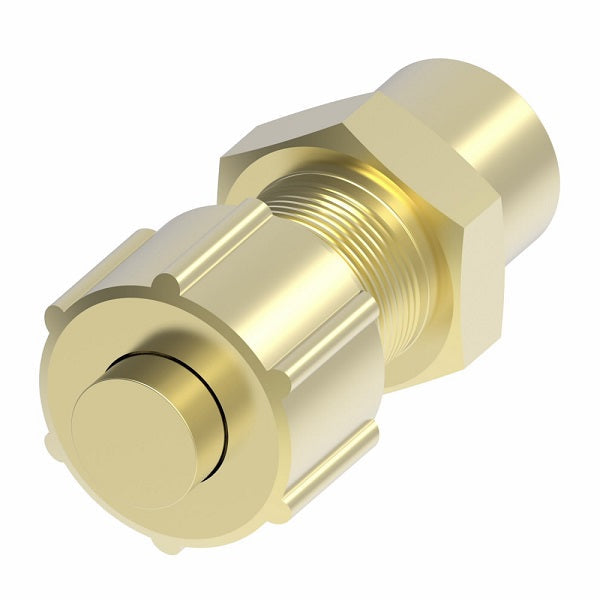

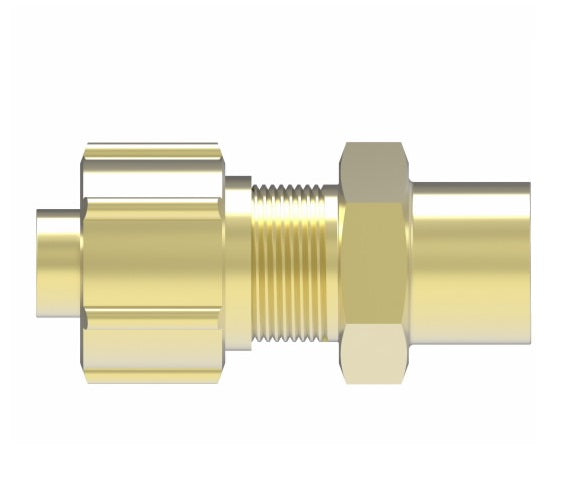

1266X4X4 by Danfoss | Polyline Flareless Adapter | Female Connector | 1/4" Tube OD x 1/4" Female NPTF | Brass
1266X4X4 by Danfoss | Polyline Flareless Adapter | Female Connector | 1/4" Tube OD x 1/4" Female NPTF | Brass
1266X4X4 by Danfoss | Polyline Flareless Adapter | Female Connector | 1/4" Tube OD x 1/4" Female NPTF | Brass
1266X4X4 by Danfoss | Polyline Flareless Adapter | Female Connector | 1/4" Tube OD x 1/4" Female NPTF | Brass

1266X4X4 by Danfoss | Polyline Flareless Adapter | Female Connector | 1/4" Tube OD x 1/4" Female NPTF | Brass

$14.85 - $14.85
$14.85
$14.85 - $14.85
$14.85

Aeroquip® by Danfoss
Polyline Flareless Adapter - Female Connector
Polyline Flareless End x Female NPTF
Straight
Specifications for Variant SKU: 1266X4X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/4in Female NPTF
Material(s): Brass
Compatible with the following Series: PT200 Series  |   PT240 Series
Applications:
  • Pneumatic instrumentation circuits, lubricant and cooling lines.
Advantages:
  • No flaring of tubing required.
  • Easy installation.
  • Captive sleeve.
  • Pre-assembled for installation and can be reassembled.
  • Excellent vibration resistance.
Used With:
  • PT200 and PT240 plastic tubing.
  • Not recommended for metal tubing.
  • Not recommended for use with PT230, TP160 or Air Brake tubing.
Material:
  • CA360 Brass Body
  • Plastic Sleeve
Pressure:
  • Working pressure up to 500 psi with a 4:1 safety factor depending on tubing.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Size x46 x4 x5 x6 x8
Tube O.D. 1/4" 1/4" 5/16" 3/8" 1/2"
Thread Size B 3/8-24 3/8-24 7/16-24 1/2-24 11/16-20
Flow Dia. (D1) .078" .125" .141" .203" .312"
Support Dia. (D2) .120" .166" .180" .245" .370"
Brass
Part Number 		Tube O.D. Female Pipe Thread Hex C L L1
1266X4 1/4" 1/8" 1/2" 0.87" 0.72"
1266X4X4 1/4" 1/4" 5/8" 1.09" 0.93"
1266X6 3/8" 1/4" 5/8" 1.09" 0.94"
