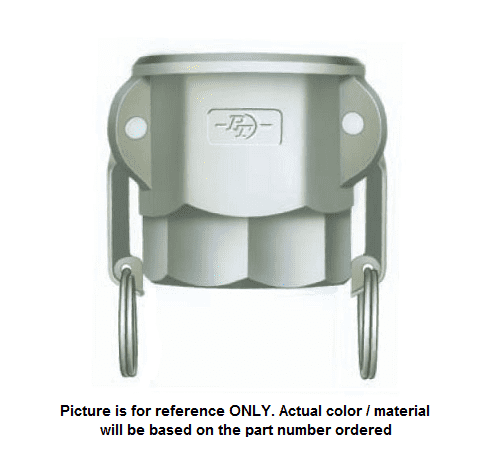

64621201 (12DWS) by PT-Coupling | 1-1/4" Coupler x Socket Weld for Pipe | 316 Stainless Steel

64621201 (12DWS) by PT-Coupling | 1-1/4" Coupler x Socket Weld for Pipe | 316 Stainless Steel

Save $11.07 Save $11.07
$99.62
$99.62 - $99.62
$99.62
$88.55
$88.55 - $88.55
$88.55
Specifications for Variant SKU: 64621201 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1-1/4in Female Cam & Groove, 1-1/4in Weld End
Material(s): 316 Stainless Steel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part DWS - Coupler x Socket Weld For Pipe - 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
E05DWS 64620101 1/2" 4.21" 1.82" 0.56" 2.00" 0.50" 0.88" 250 PSI
07DWS 64620701 3/4" 4.51" 2.11" 0.88" 2.06" 0.50" 1.10" 250 PSI
07X05DWS 64620702 3/4" x 1/2" - - - - - - 250 PSI
10DWS 64621002 1" 5.10" 2.44" 0.97" 2.50" 0.50" 1.36" 250 PSI
10X07DWS 64621001 1" x 3/4" - - - - - - 250 PSI
12DWS 64621201 1-1/4" 6.86" 3.26" 1.25" 2.70" 0.50" 1.71" 250 PSI
15DWS 64621502 1-1/2" 7.16" 3.56" 1.50" 2.81" 0.50" 1.95" 250 PSI
20DWS 64622002 2" 7.54" 3.94" 1.88" 3.10" 0.70" 2.44" 250 PSI
25DWS 64622501 2-1/2" 8.03" 4.43" 2.38" 3.40" .70" 2.94" 200 PSI
25X20DWS 64622530 2-1/2" x 2 - - - - - - 200 PSI
30DWS 64623001 3" 9.56" 5.46" 2.88" 3.50" .70" 3.57" 200 PSI
40DWS 64624003 4" 10.66" 6.56" 3.60" 3.90" .70" 4.58" 150 PSI
40X30DWS 64624031 4" x 3" - - - - - - 150 PSI
50DWS 64625001 5" 11.67" 7.57" 4.50" 4.20" .90" 5.66" 75 PSI
60DWS 64626004 6" 16.26" 10.16" 5.50" 4.54" .90" 6.72" 75 PSI
80DWS 64628001 8" 18.23" 12.13" 7.50" 4.80" .90" 8.74" 50 PSI
100DWS 64629002 10" 20.66" 14.40" 9.40" 5.50" .90" 10.89" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
