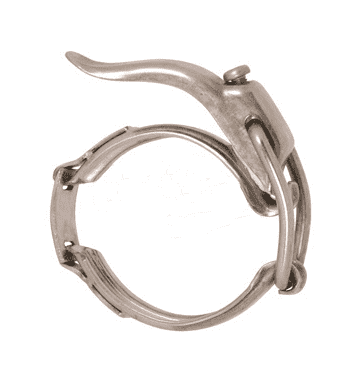

13MHLA400 Dixon 304 Stainless Steel Toggle Sanitary Clamp - 4" Tube OD

13MHLA400 Dixon Valve 304 Stainless Steel Toggle Sanitary Clamp - 4" Tube OD

$34.02 - $34.02
$34.02
$35.71
$35.71 - $35.71
$35.71

Dixon Sanitary Clamps - Toggle Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13MHLA400 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 4
Features:
  • Screw tightened to maximum.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating PSI
@ 70 deg. F		 Service Pressure Rating PSI
@ 250 deg. F		 Dimension A
Weight
(Lbs.)
13MHLA100-150 1" - 1-1/2" 150 125 2.122 0.1800
13MHLA200 2" 150 125 2.654 0.2010
13MHLA250 2-1/2" 150 125 3.190 0.2200
13MHLA300 3" 150 125 3.717 0.2400
13MHLA400 4" 100 75 4.820 0.3000
