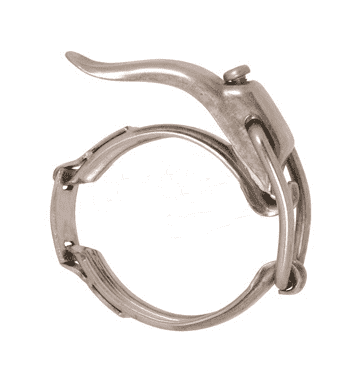

13MHLA100-150 Dixon 304 Stainless Steel Toggle Sanitary Clamp - 1" - 1-1/2" Tube OD

13MHLA100-150 Dixon Valve 304 Stainless Steel Toggle Sanitary Clamp - 1" - 1-1/2" Tube OD

Save $14.27 Save $14.27
$35.68
$35.68 - $35.68
$35.68
$21.41
$21.41 - $21.41
$21.41

Dixon Sanitary Clamps - Toggle Clamps - 304 Stainless Steel
Specifications for Variant SKU: 13MHLA100-150 Dixon
Material(s): 304 Stainless Steel
Minimum Clamp I.D.: 1
Maximum Clamp I.D.: 1.5
Features:
  • Screw tightened to maximum.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating PSI
@ 70 deg. F		 Service Pressure Rating PSI
@ 250 deg. F		 Dimension A
Weight
(Lbs.)
13MHLA100-150 1" - 1-1/2" 150 125 2.122 0.1800
13MHLA200 2" 150 125 2.654 0.2010
13MHLA250 2-1/2" 150 125 3.190 0.2200
13MHLA300 3" 150 125 3.717 0.2400
13MHLA400 4" 100 75 4.820 0.3000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
