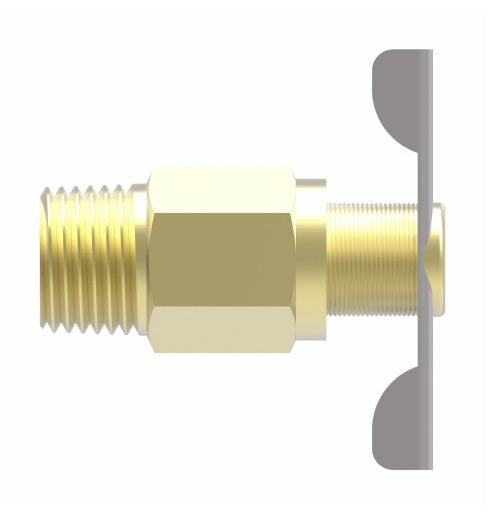

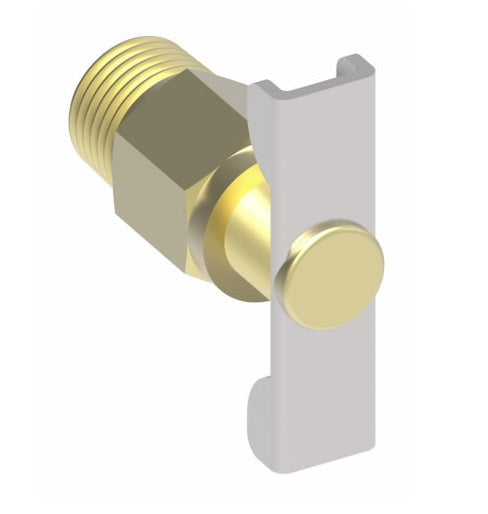

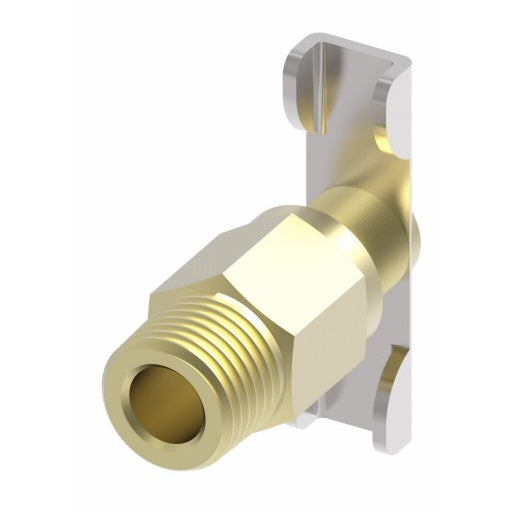

145Z by Danfoss | Air Brake Adapter for Copper Tubing | External Seat Draincock (with Sealant) | 1/4" Male Pipe | Brass

145Z by Danfoss | Air Brake Adapter for Copper Tubing | External Seat Draincock (with Sealant) | 1/4" Male Pipe | Brass

Name: 145Z by Danfoss | Air Brake Adapter for Copper Tubing | External Seat Draincock (with Sealant) | 1/4" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 145Z Danfoss
Price: 3.8 USD
Availability: InStock

$3.80 - $3.80

$3.80

$3.80 - $3.80

$3.80

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - External Seat Draincock

Quantity

Specifications for Variant SKU: 145Z Danfoss
Shape (Orientation):	Straight
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass with Sealant Part Number	Male Pipe Thread	Hex C	L
145	145Z	1/4"	9/16"	1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
