Aeroquip® by Danfoss

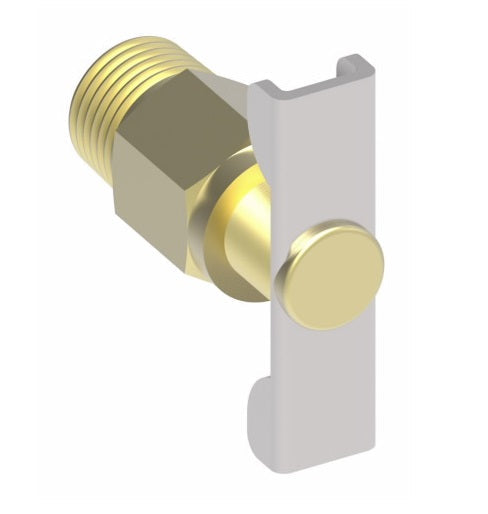

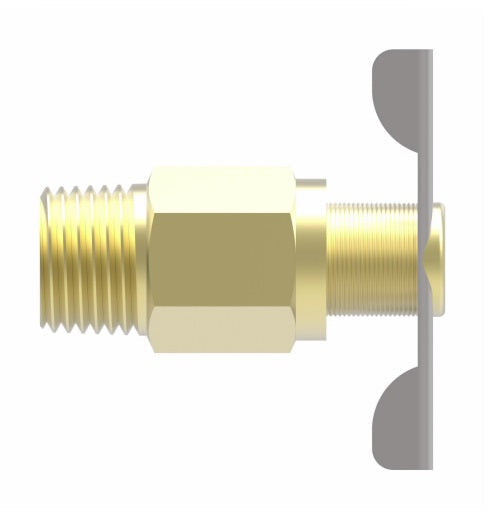

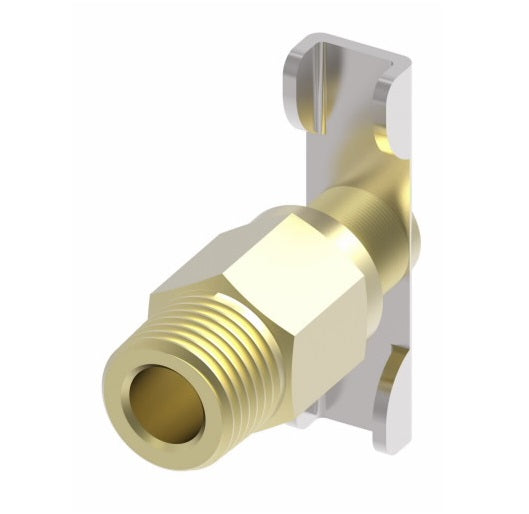

Air Brake Adapter for Copper Tubing - External Seat Draincock
Specifications for Variant SKU: 145 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
with Sealant
Part Number 		Male Pipe Thread Hex
C		 L
145 145Z 1/4" 9/16" 1.00"
