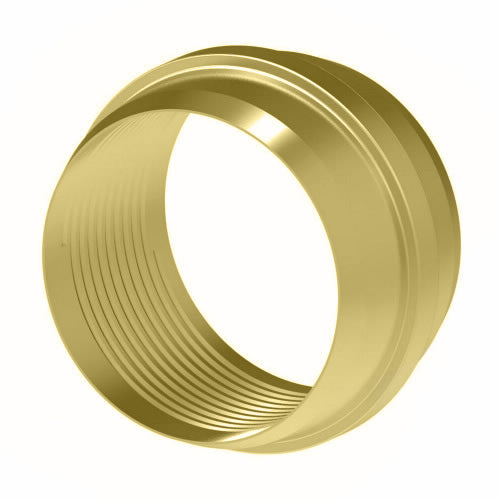

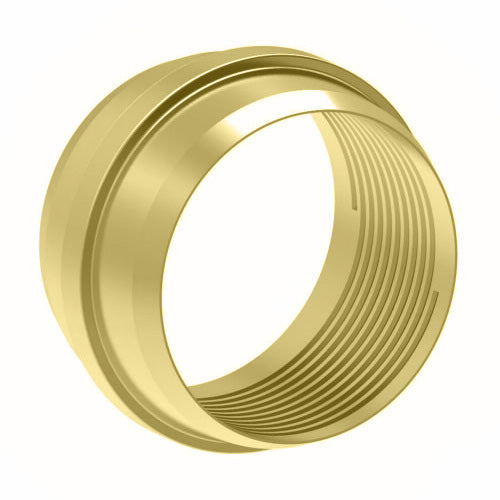

1460X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Sleeve | 3/4" Tube OD | Brass
1460X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Sleeve | 3/4" Tube OD | Brass
1460X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Sleeve | 3/4" Tube OD | Brass
1460X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Sleeve | 3/4" Tube OD | Brass

1460X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Sleeve | 3/4" Tube OD | Brass

$2.63 - $2.63
$2.63
$2.63 - $2.63
$2.63

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Sleeve
Specifications for Variant SKU: 1460X12 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100115
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. Diameter
C		 D L
1460X4 1/4" 0.359" 0.256" 0.300"
1460X6 3/8" 0.479" 0.384" 0.390"
1460X8 1/2" 0.625" 0.509" 0.430"
1460X10 5/8" 0.745" 0.635" 0.480"
1460X12 3/4" 0.922" 0.760" 0.530"
