Name: 1461X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Nut | 3/4" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1461X12 Danfoss
Price: 6.17 USD
Availability: InStock

$6.17 - $6.17

$6.17

$6.17 - $6.17

$6.17

Aeroquip® by Danfoss

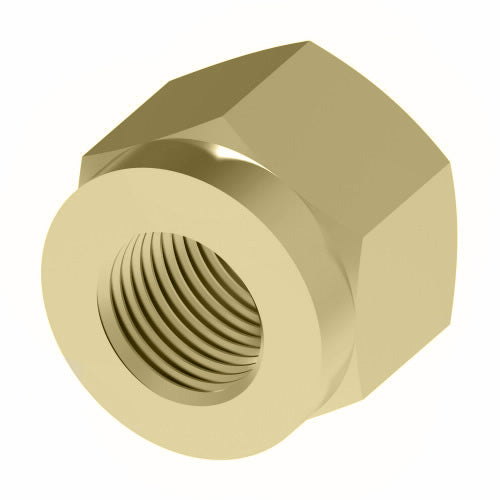

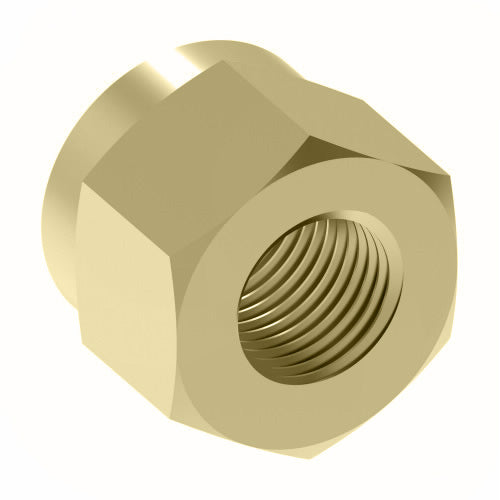

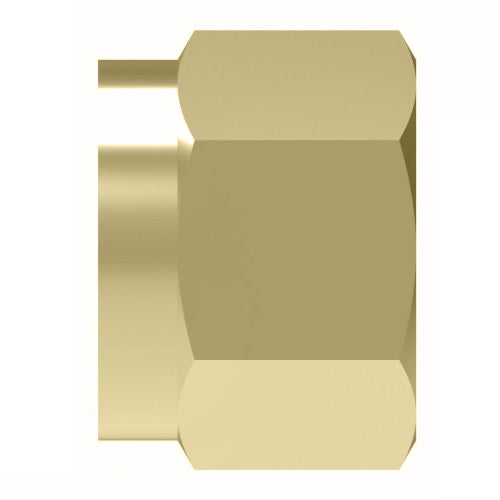

Air Brake Adapter for Nylon Tubing - Nut

Quantity

Specifications for Variant SKU: 1461X12 Danfoss
Material(s):	Brass
Compatible with the following Series:	3270 Series \| 4247 Series \| 4245 Series

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
Easy to assemble (no tube preparation or flaring required.) Built in tube support. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use. Fair Vibration Resistance.
Used With:
Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Ref. SAE No. 100110 Meets specifications and standards of SAE and DOT FMVSS 571.106.

Tube O.D.	1/4"	3/8"	1/2"	5/8"	3/4"
Thread Size	7/16-24	17/32-24	11/16-20	13/16-18	1-18


Brass Part Number	Tube O.D.	Hex C	D	L
1461X4	1/4"	9/16"	0.256"	0.450"
1461X6	3/8"	5/8"	0.384"	0.630"
1461X8	1/2"	13/16"	0.509"	0.720"
1461X10	5/8"	15/16"	0.634"	0.770"
1461X12	3/4"	1-1/8"	0.760"	0.810"
