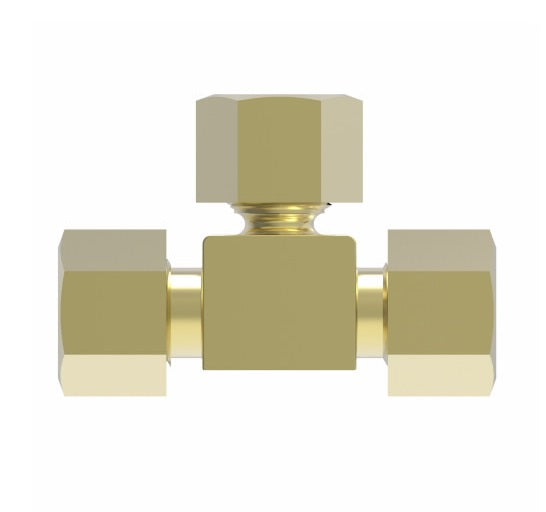

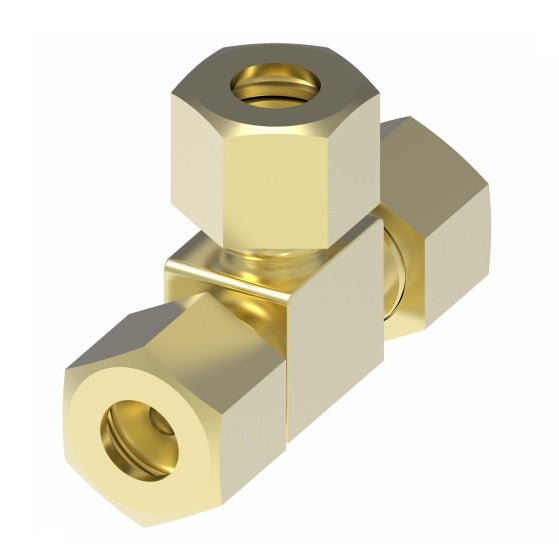

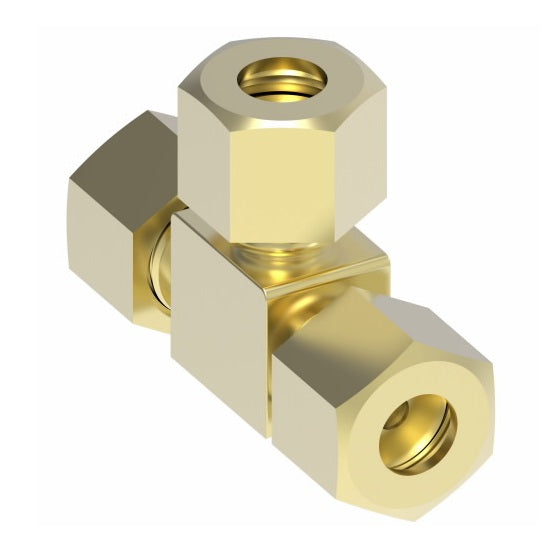

1464X8X8X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Tube OD Branch | Brass
1464X8X8X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Tube OD Branch | Brass
1464X8X8X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Tube OD Branch | Brass
1464X8X8X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Tube OD Branch | Brass

1464X8X8X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Tube OD Branch | Brass

$58.91 - $58.91
$58.91
$58.91 - $58.91
$58.91

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Union Tee
Specifications for Variant SKU: 1464X8X8X6 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100401BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D.
(Dimensions Read Left, Right, Center)		 M M1 M2
1464X4 1/4" 0.64" 0.64" 0.64"
1464X6X6X4 3/8" x 3/8" x 1/4" 0.72" 0.72" 0.69"
1464X6 3/8" 0.80" 0.80" 0.80"
1464X8X8X6 1/2" x 1/2" x 3/8" 0.86" 0.86" 0.85"
1464X8 1/2" 0.94" 0.94" 0.94"
