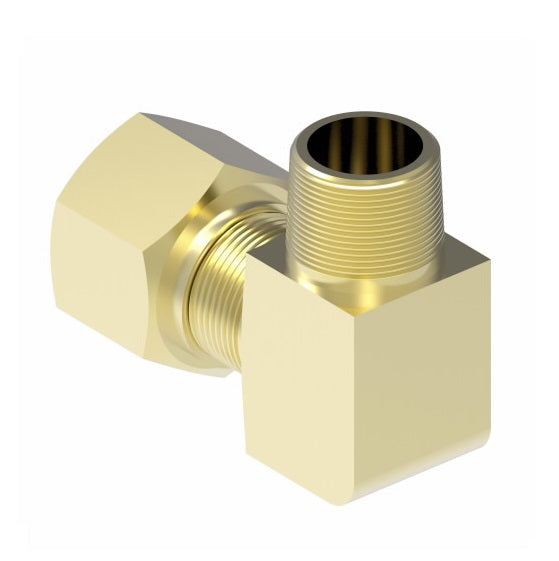

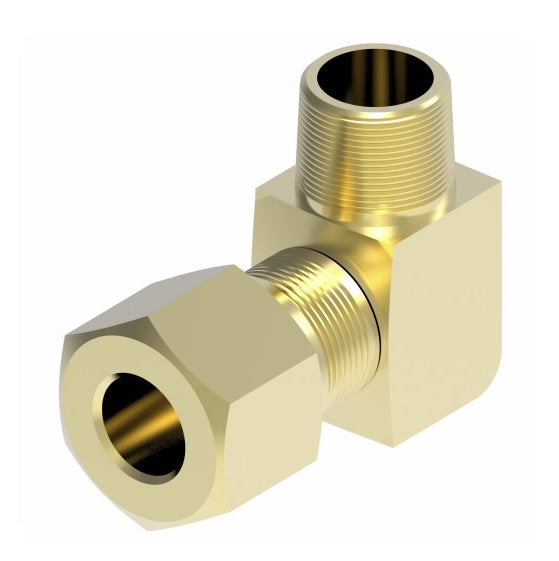

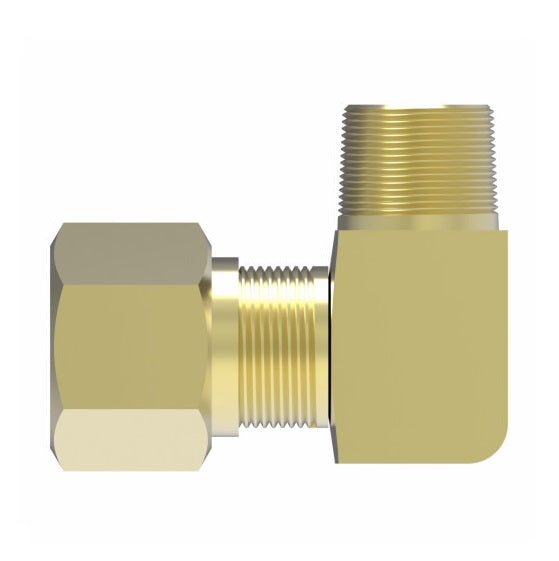

1469X6L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 3/8" Tube OD x 1/4" Male Pipe | Brass
1469X6L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 3/8" Tube OD x 1/4" Male Pipe | Brass
1469X6L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 3/8" Tube OD x 1/4" Male Pipe | Brass
1469X6L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 3/8" Tube OD x 1/4" Male Pipe | Brass

1469X6L by Danfoss | Air Brake Adapter for Nylon Tubing | Male Connector 90° Elbow (Long) | 3/8" Tube OD x 1/4" Male Pipe | Brass

$15.58 - $15.58
$15.58
$15.58 - $15.58
$15.58

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Male Connector Long

Specifications for Variant SKU: 1469X6L Danfoss
Shape (Orientation): 90 Degree
Material(s): Brass
Special Properties: Long
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100202BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe
Thread		 D1 M N
1469X6L - 3/8" 1/4" 0.312" 0.80" 1.44"
1469X8L - 1/2" 3/8" 0.406" 0.94" 1.38"
