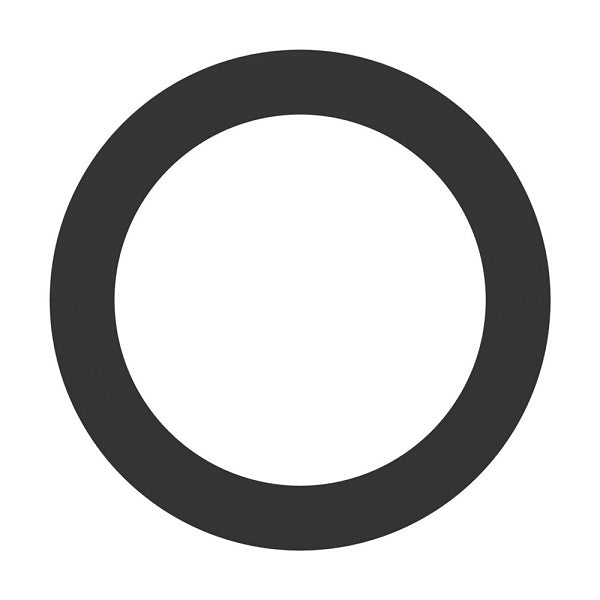

1485X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Gauge Ring | 3/4" Tube OD

1485X12 by Danfoss | Air Brake Adapter for Nylon Tubing | Gauge Ring | 3/4" Tube OD

$1.73 - $1.73
$1.73
$1.73 - $1.73
$1.73

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Gauge Ring
Specifications for Variant SKU: 1485X12 Danfoss
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. L
1485X4 1/4" .085/.105
1485X6 3/8" .125/.145
1485X8 1/2" .100/.120
1485X10 5/8" .115/.135
1485X12 3/4" .180/.200
