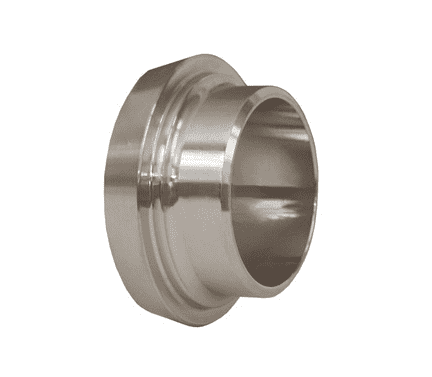

14A-R250DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Liner - 2-1/2" Tube OD - 65 DN Size

14A-R250DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Liner - 2-1/2" Tube OD - 65 DN Size

Save $0.57 Save $0.57
$27.30
$27.30 - $27.30
$27.30
$26.73
$26.73 - $26.73
$26.73

Dixon's Bradford™ Sanitary European Fittings - DIN Welding Liners - 316 Stainless Steel
Specifications for Variant SKU: 14A-R250DIN Dixon
Shape (Orientation): No Orientation
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions
Weight
(Lbs.)
A B
14A-R100DIN 1" 25 .87" 1.73" 0.0900
14A-R150DIN 1-1/2" 40 1.02" 2.20" 0.1200
14A-R200DIN 2" 50 1.10" 2.68" 0.1700
14A-R250DIN 2-1/2" 65 1.26" 3.39" 0.3000
14A-R300DIN 3" 80 1.46" 3.94" 0.3500
14A-R400DIN 4" 100 1.73" 4.76" 0.5300
