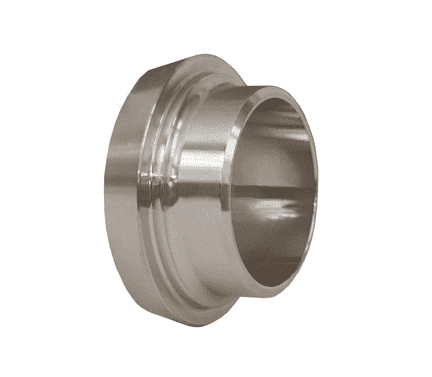

14A-R200DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Liner - 2" Tube OD - 50 DN Size

14A-R200DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Liner - 2" Tube OD - 50 DN Size

Save $11.73 Save $11.73
$29.33
$29.33 - $29.33
$29.33
$17.60
$17.60 - $17.60
$17.60

Dixon's Bradford™ Sanitary European Fittings - DIN Welding Liners - 316 Stainless Steel
Specifications for Variant SKU: 14A-R200DIN Dixon
Shape (Orientation): No Orientation
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions
Weight
(Lbs.)
A B
14A-R100DIN 1" 25 .87" 1.73" 0.0900
14A-R150DIN 1-1/2" 40 1.02" 2.20" 0.1200
14A-R200DIN 2" 50 1.10" 2.68" 0.1700
14A-R250DIN 2-1/2" 65 1.26" 3.39" 0.3000
14A-R300DIN 3" 80 1.46" 3.94" 0.3500
14A-R400DIN 4" 100 1.73" 4.76" 0.5300
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
