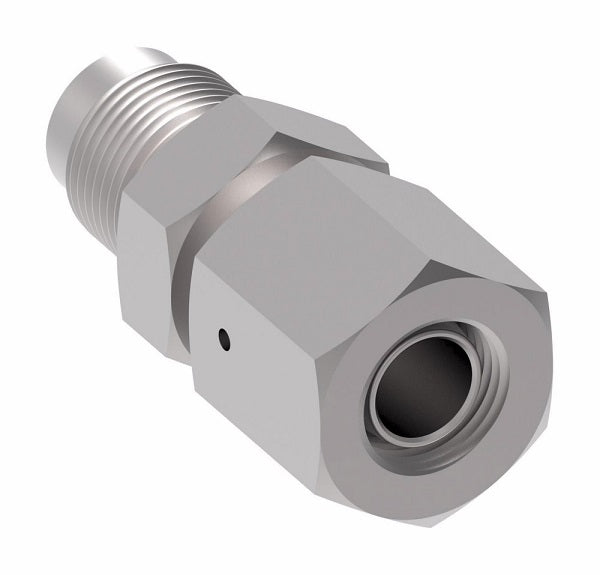

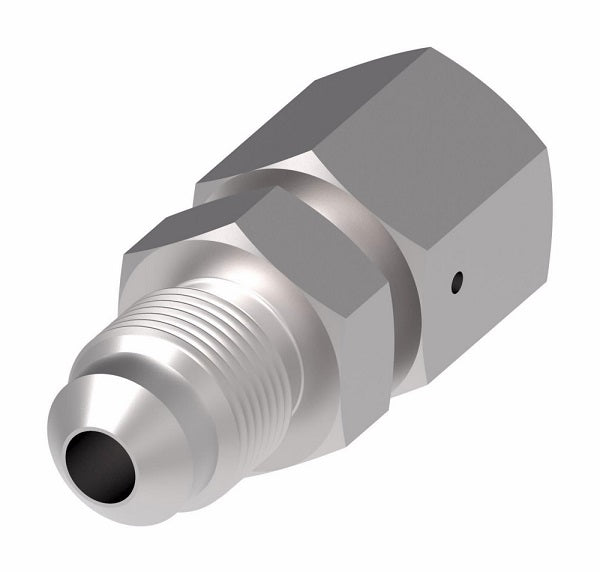

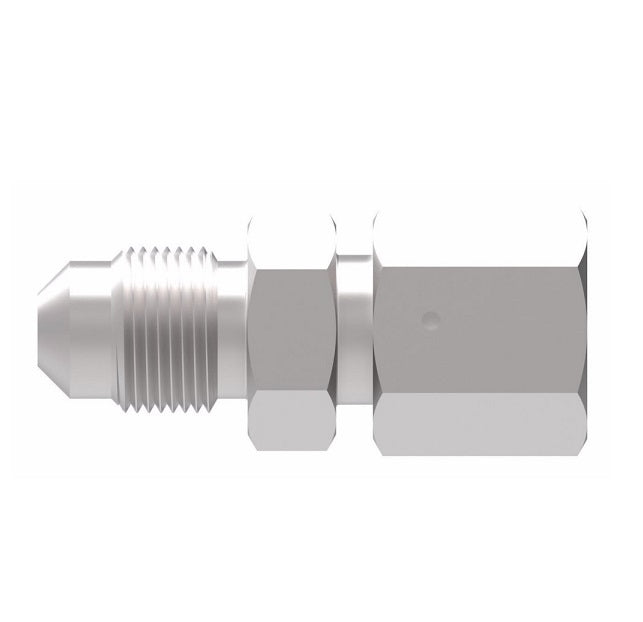

15.163-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 l.Rh)/37° Flare Adapter | M14 Female Metric x -06 Male 37° JIC Flare | Steel

15.163-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 l.Rh)/37° Flare Adapter | M14 Female Metric x -06 Male 37° JIC Flare | Steel

Name: 15.163-6-6 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 l.Rh)/37° Flare Adapter | M14 Female Metric x -06 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 15.163-6-6 Danfoss
Price: 19.89 USD
Availability: InStock

$19.89 - $19.89

$19.89

$19.89 - $19.89

$19.89

Aeroquip® by Danfoss
Metric 24° (DIN 3901/3902 l.Rh)/37° Flare Adapter
Female Metric x Male 37° JIC Flare
Straight

Universal Fitting also mates with 60° DIN 7631/7647 connections.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 15.163-6-6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	14mm Female Metric, 3/8in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
15.163-4-4	0.25"	M12 x 1.5	7/16-20	1.36"
15.163-6-6	0.38"	M14 x 1.5	9/16-18	1.36"
15.163-8-6	0.38"	M16 x 1.5	9/16-18	1.40"
15.163-8-8	0.50"	M16 x 1.5	3/4-16	1.50"
15.163-10-8	0.50"	M18 x 1.5	3/4-16	1.50"
15.163-16-12	0.75"	M26 x 1.5	1-1/16-12	1.87"
