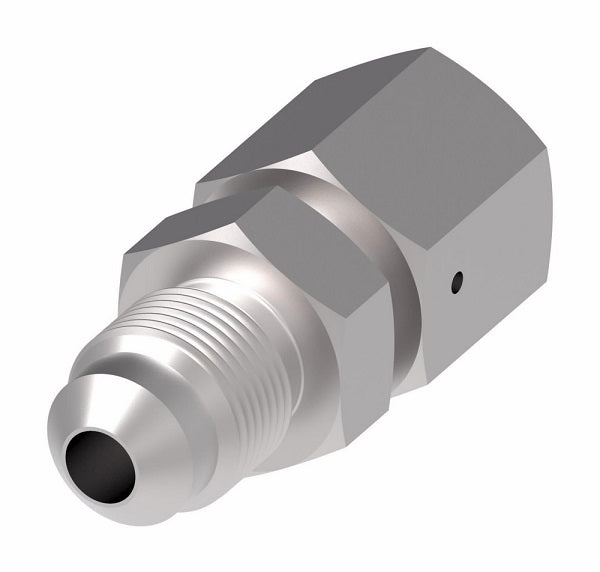

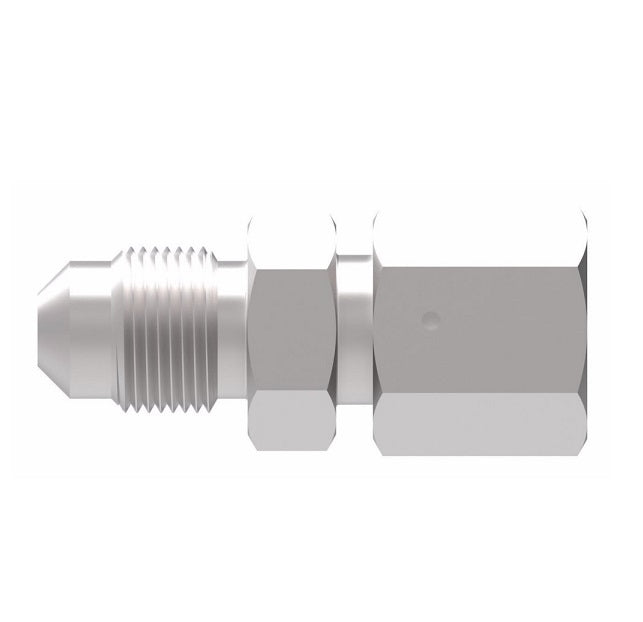

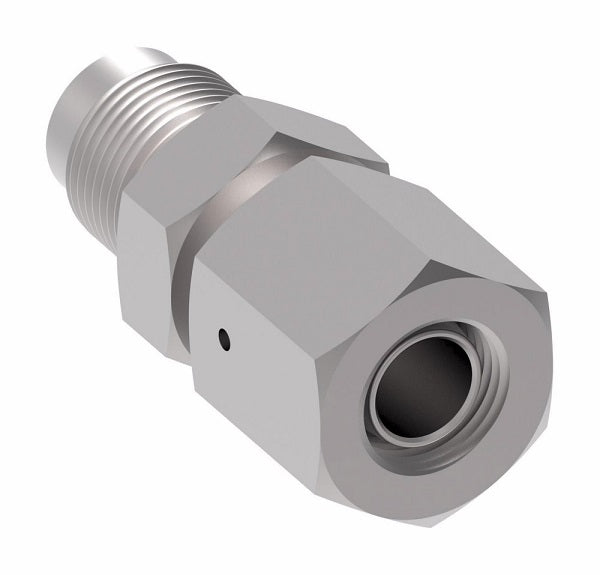

15.164-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Adapter | M22 Female Metric x -10 Male 37° JIC Flare | Steel

15.164-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Adapter | M22 Female Metric x -10 Male 37° JIC Flare | Steel

Name: 15.164-14-10 Aeroquip by Danfoss | Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Adapter | M22 Female Metric x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 15.164-14-10 Danfoss
Price: 56.13 USD
Availability: InStock

$56.13 - $56.13

$56.13

$56.13 - $56.13

$56.13

Aeroquip® by Danfoss
Metric 24° (DIN 3901/3902 s.Rh)/37° Flare Adapter
Female Metric x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 15.164-14-10 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	22mm Female Metric, 5/8in Male JIC
Material(s):	Steel


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A
15.164-6-6	0.38"	M14 x 1.5	9/16-18	1.38"
15.164-10-8	0.50"	M18 x 1.5	3/4-16	1.50"
15.164-14-10	0.63"	M22 x 1.5	7/8-14	1.61"
15.164-16-12	0.75"	M24 x 1.5	1-1/16-12	1.71"
15.164-20-16	1.00"	M30 x 2.0	1-1/16-12	1.85"
