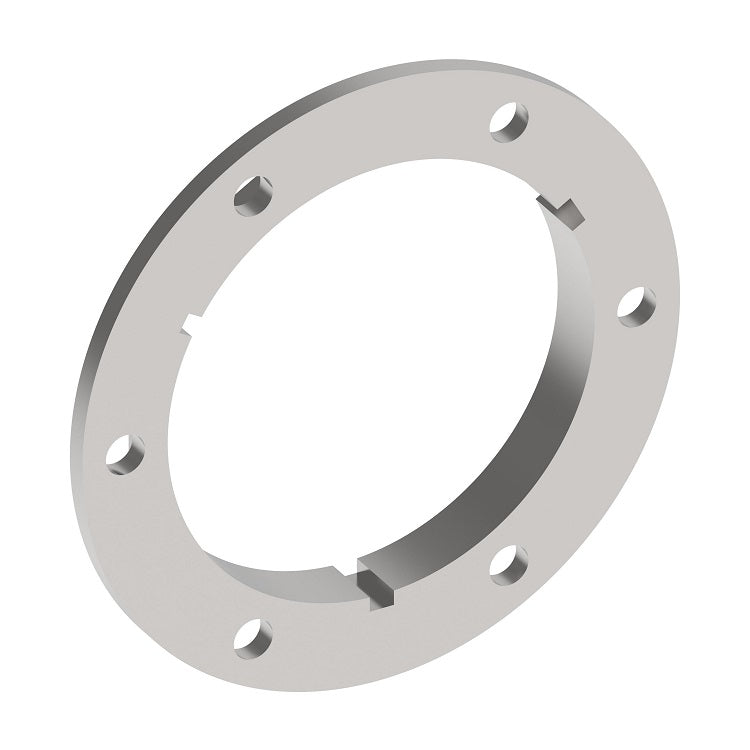

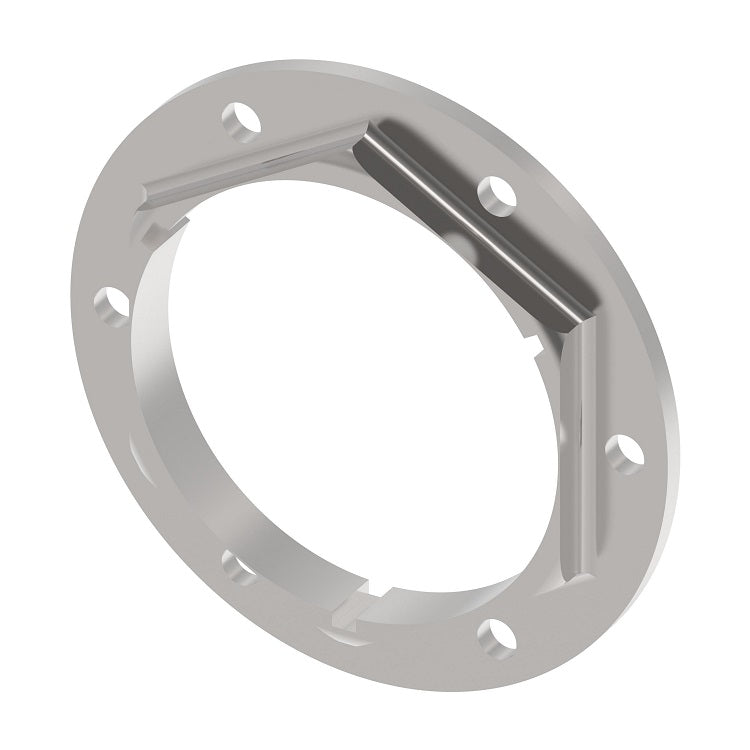

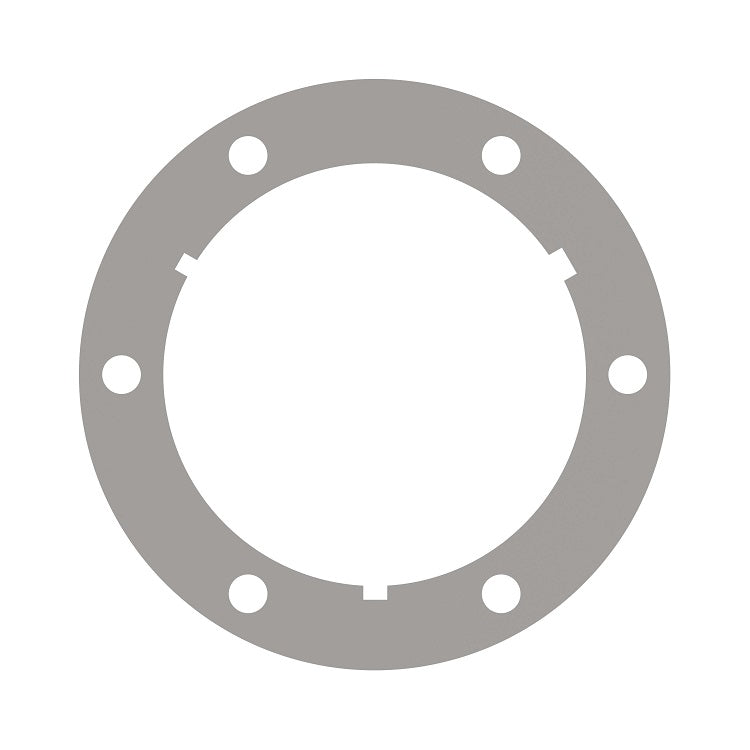

150-22-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 6-Bolt Flange Assembly | 1" Body Size | Steel

150-22-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 6-Bolt Flange Assembly | 1" Body Size | Steel

$2.24 - $2.24

$2.24

$2.24 - $2.24

$2.24

Hansen® by Danfoss
5100 Series | Thread to Connect | 6-Bolt Flange Assembly

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Quantity

Specifications for Variant SKU: 150-22-16 Danfoss
Brand:	Hansen
Series:	5100 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel

Applications & Markets:	Hydraulics and Fluid Transfer On-highway Hydraulic Wet Lines Dump and Refuse Vehicles Bulk Liquid Transfer Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:	Standard body material: carbon steel.


Part Number	Body Size	Dimensions
Part Number	Body Size	A*	B
150-22-5	1/4"	0.201" (5.11mm)	1.44" (33.6mm)
150-22-8	3/8" & 1/2"	0.201" (5.11mm)	1.69" (42.9mm)
150-22-12	5/8" & 3/4"	0.201" (5.11mm)	2.12" (53.8mm)
150-22-16	1"	0.201" (5.11mm)	2.38" (60.5mm)
150-22-20	1-1/4"	0.201" (5.11mm)	2.62" (66.5mm)

* 6 Bolt Flange-holes equally spaced.
