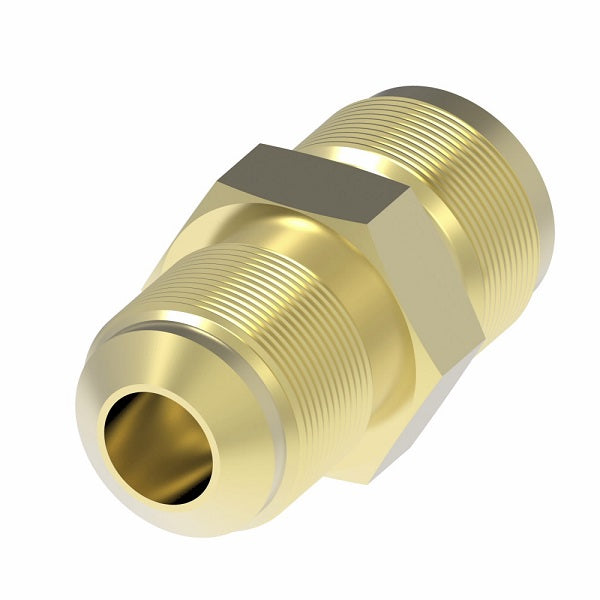

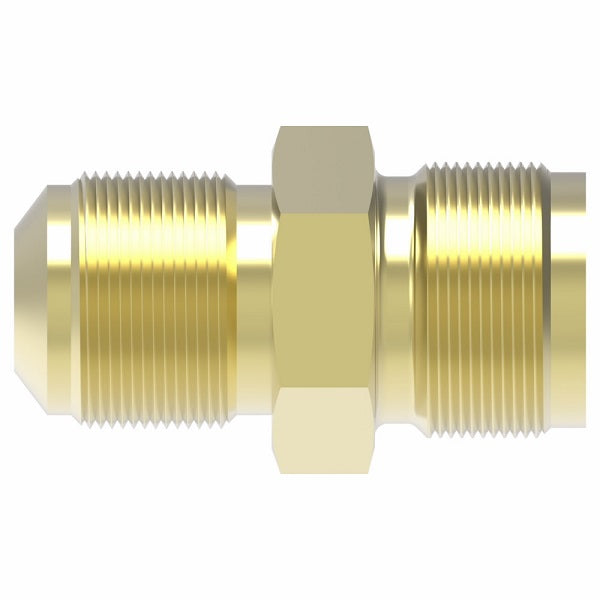

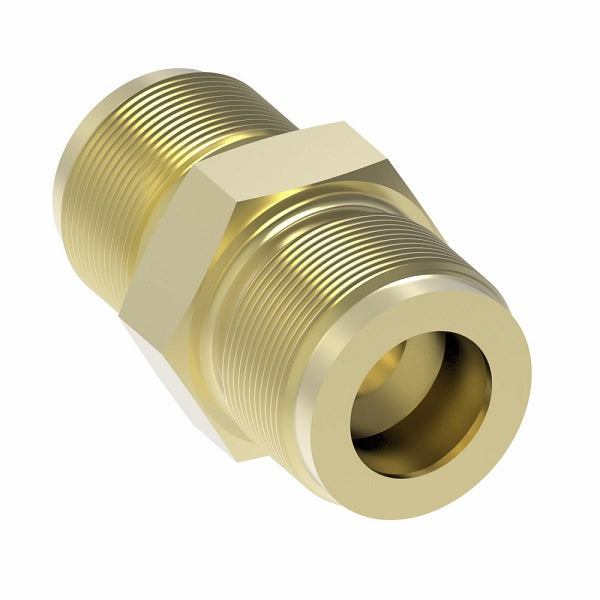

1553 by Danfoss | SAE 45° Flare/Inverted Flare Adapter | 3/8" Male SAE 45° Flare x 5/16" Male SAE Inverted Flare | Brass
1553 by Danfoss | SAE 45° Flare/Inverted Flare Adapter | 3/8" Male SAE 45° Flare x 5/16" Male SAE Inverted Flare | Brass
1553 by Danfoss | SAE 45° Flare/Inverted Flare Adapter | 3/8" Male SAE 45° Flare x 5/16" Male SAE Inverted Flare | Brass
1553 by Danfoss | SAE 45° Flare/Inverted Flare Adapter | 3/8" Male SAE 45° Flare x 5/16" Male SAE Inverted Flare | Brass

1553 by Danfoss | SAE 45° Flare/Inverted Flare Adapter | 3/8" Male SAE 45° Flare x 5/16" Male SAE Inverted Flare | Brass

$32.11 - $32.11
$32.11
$32.11 - $32.11
$32.11

Aeroquip® by Danfoss
SAE 45° Flare/Inverted Flare Adapter
Male SAE 45° Flare x Male SAE Inverted Flare
Straight
Specifications for Variant SKU: 1553 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male SAE 45 Flare, 5/16in Male Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Brass
Part Number 		SAE 45°
Flare Size		 Inverted
Flare Size		 Hex
C		 D Length
1518 1/4" 3/16" 7/16" 0.189" 1.031"
1522 1/4" 1/4" 7/16" 0.188" 1.031"
1553 3/8" 5/16" 5/8" 0.234" 1.340"
1563 3/8" 3/8" 5/8" 0.282" 1.380"
1554 3/8" 7/16" 11/16" 0.282" 1.400"
