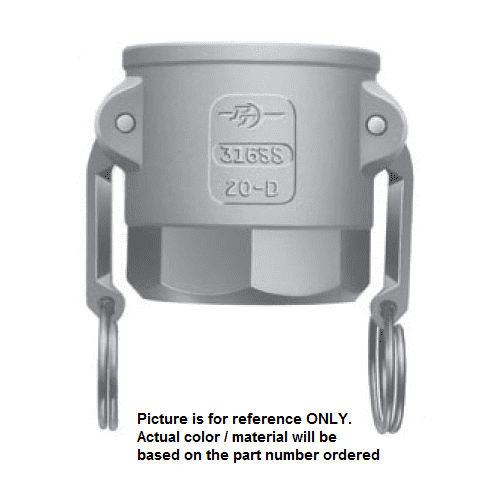

60361500 (15DS) by PT-Coupling | 1-1/2" Coupler x 1-1/2" Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals

60361500 (15DS) by PT-Coupling | 1-1/2" Coupler x 1-1/2" Female NPSH | Aluminum/HBS | Buna Fuel Resistant & Buna-N Seals

Save $11.37 Save $11.37
$102.36
$102.36 - $102.36
$102.36
$90.99
$90.99 - $90.99
$90.99
Specifications for Variant SKU: 60361500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Female NPSH
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Straight Threads - Part DS - Coupler x Female Straight Pipe (NPSH) Thread - Aluminum/HBS
Features & Applications:
  • HBS cam arms are made of 300 series Stainless Steel.
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Coupler
Size		 Female NPSH
Thread		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
07DS 60360075 3/4" 3/4" - - - - 250 PSI
10DS 60361000 1" 1" - - - - 250 PSI
15DS 60361500 1-1/2" 1-1/2" - - - - 250 PSI
20DS 60362000 2" 2" 7.54" 3.94" 3.10" 1.88" 250 PSI
25DS 60362500 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DS 60363000 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
40DS 60364000 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI
50DS 60365000 5" 5" 11.67" 7.57" 4.10" 4.50" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
