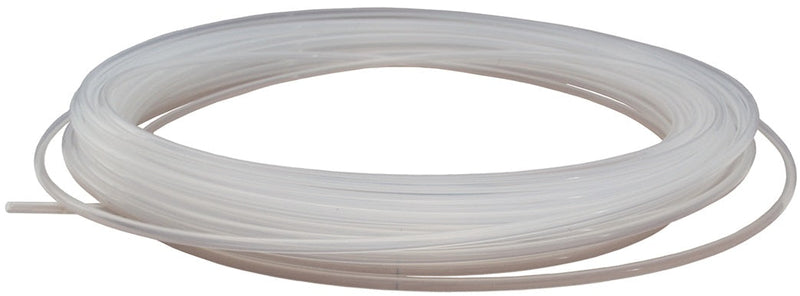

16320 by Dixon Valve | Polyurethane Tubing | 1/2" OD | 0.320" ID | 0.0900" Wall Thickness | 50ft Length

Save $14.29

$128.64

$128.64 - $128.64

$128.64

$114.35

$114.35 - $114.35

$114.35

Dixon Valve
Polyurethane Tubing

For use with the push-in fittings.

Quantity

Specifications for Variant SKU: 16320 Dixon
Series:	Plastic Fittings and Tubing
Hose Color(s):	White/Off-White
Internal Diameter:	0.32in
Outer Diameter:	0.50in
Tubing Construction:	Polyurethane

Features:
Naturally transparent. Excellent memory, flexibility, and resistance to kinking. Good resistance to fuels and oils. Low gas and vapor permeability. High compressive strength. Low compressive set and extractability levels. Outstanding abrasion resistance.
Specifications:
Temperature range: -40°F to 165°F (-40°C to 74°C). NSF61 certified for potable water.

Polyurethane Part Number	Size		Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
Polyurethane Part Number	O.D.	I.D.	Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
04063	1/8"	0.062"	0.0295"	255 PSI	250ft
05094	5/32"	0.094"	0.0315"	210 PSI	100ft
08160	1/4"	0.160"	0.0450"	175 PSI	100ft
12250	3/8"	0.245"	0.0650"	170 PSI	100ft
16320	1/2"	0.320"	0.0900"	175 PSI	50ft
