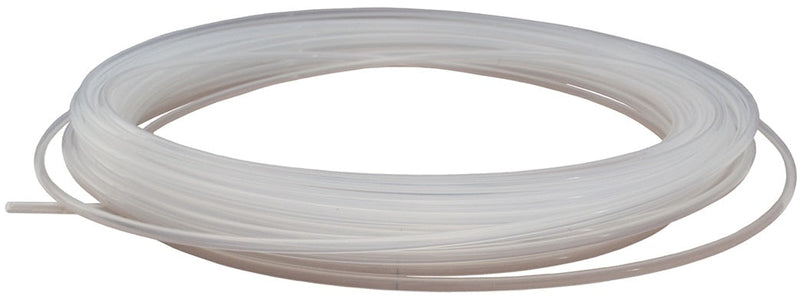

05094 by Dixon Valve | Polyurethane Tubing | 5/32" OD | 0.094" ID | 0.0315" Wall Thickness | 100ft Length

Save $3.26

$29.34

$29.34 - $29.34

$29.34

$26.08

$26.08 - $26.08

$26.08

Dixon Valve
Polyurethane Tubing

For use with the push-in fittings.

Package Quantity: 100 Feet

Quantity

Specifications for Variant SKU: 05094 Dixon
Internal Diameter:	0.094in
Outer Diameter:	0.15625in
Tubing Construction:	Polyurethane

Features:
Naturally transparent. Excellent memory, flexibility, and resistance to kinking. Good resistance to fuels and oils. Low gas and vapor permeability. High compressive strength. Low compressive set and extractability levels. Outstanding abrasion resistance.
Specifications:
Temperature range: -40°F to 165°F (-40°C to 74°C). NSF61 certified for potable water.

Polyurethane Part Number	Size		Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
Polyurethane Part Number	O.D.	I.D.	Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length
04063	1/8"	0.062"	0.0295"	255 PSI	250ft
05094	5/32"	0.094"	0.0315"	210 PSI	100ft
08160	1/4"	0.160"	0.0450"	175 PSI	100ft
12250	3/8"	0.245"	0.0650"	170 PSI	100ft
16320	1/2"	0.320"	0.0900"	175 PSI	50ft

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
