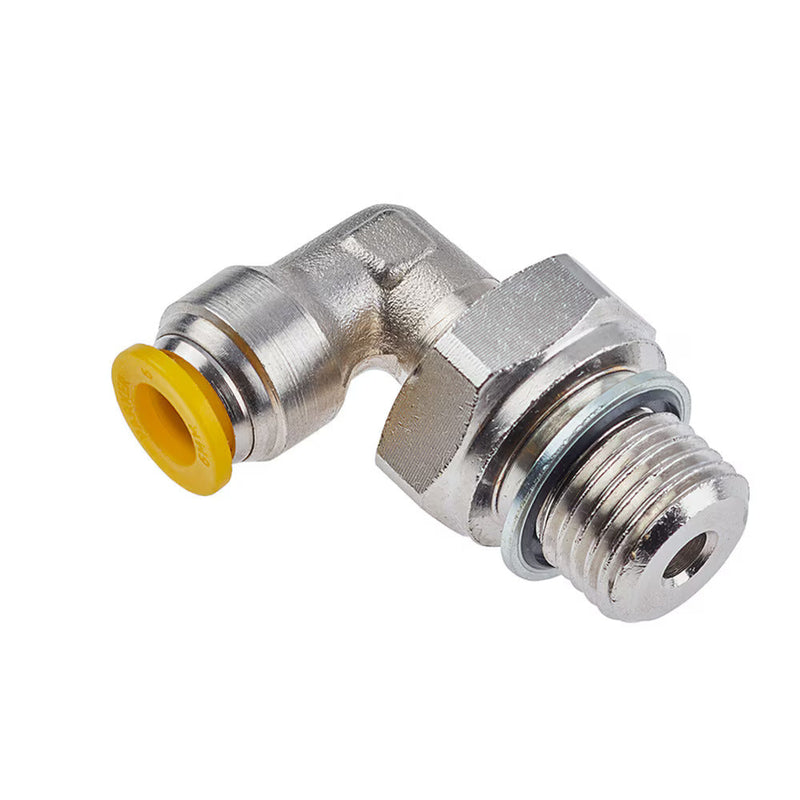

169PLP-8M-4G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 8mm Swivel x 1/4" Male BSPP Thread | 3/4" Hex | 24.20mm Length (L) | 33.25mm (N) | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

169PLP-8M-4G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 8mm Swivel x 1/4" Male BSPP Thread | 3/4" Hex | 24.20mm Length (L) | 33.25mm (N) | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $7.65 Save $7.65
$84.12
$84.12 - $84.12
$84.12
$76.47
$76.47 - $76.47
$76.47

by Parker Hannifin
Push-to-Connect Fittings:169PLP Male Elbow Swivel 90° – BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 169PLP-8M-4G Parker | 10 |
Series: 169PLP Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button, Swivel
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Thread BSPP Hex (C) L N Flow Diameter (D)
169PLP-4M-M5 4 mm M5X0.8 3/8" 19.05 mm 19.79 mm 2.425 mm
169PLP-4M-2G 4 mm 1/8" 9/16" 19.05 mm 23.92 mm 3.175 mm
169PLP-4M-4G 4 mm 1/4" 3/4" 19.05 mm 30.27 mm 3.175 mm
169PLP-6M-M5* 6 mm M5X0.8 3/8" 19.12 mm 18.52 mm 2.425 mm
169PLP-6M-2G 6 mm 1/8" 9/16" 19.12 mm 22.94 mm 3.960 mm
169PLP-6M-4G 6 mm 1/4" 3/4" 19.12 mm 29.23 mm 3.960 mm
169PLP-6M-6G 6 mm 3/8" 11/16" 19.12 mm 31.04 mm 2.425 mm
169PLP-8M-2G 8 mm 1/8" 9/16" 24.25 mm 27.13 mm 6.350 mm
169PLP-8M-4G 8 mm 1/4" 3/4" 24.20 mm 33.25 mm 6.350 mm
169PLP-8M-6G 8 mm 3/8" 11/16" 24.25 mm 33.22 mm 6.350 mm
169PLP-10M-4G 10 mm 1/4" 3/4" 23.75 mm 32.77 mm 6.350 mm
169PLP-10M-6G 10 mm 3/8" 11/16" 23.75 mm 32.61 mm 6.350 mm
169PLP-10M-8G 10 mm 1/2" 1-1/16" 23.75 mm 37.59 mm 6.350 mm
169PLP-12M-4G 12 mm 1/4" 3/4" 26.63 mm 35.20 mm 7.950 mm
169PLP-12M-6G 12 mm 3/8" 7/8" 26.63 mm 53.20 mm 9.525 mm
169PLP-12M-8G 12 mm 1/2" 1-1/16" 26.63 mm 38.96 mm 9.525 mm

*M5 seal is neoprene
