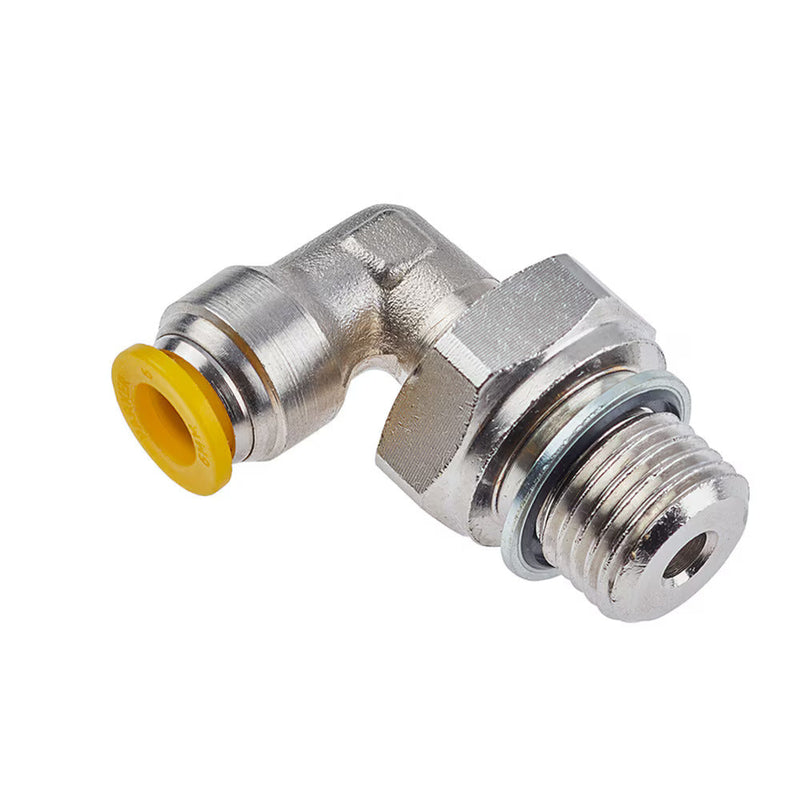

169PLP-10M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fittings | 10mm Swivel x 3/8" Male BSPP Thread | 11/16" Hex | 23.75mm Length (L) | 32.61mm (N) | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $56.42

$141.05

$141.05 - $141.05

$141.05

$84.63

$84.63 - $84.63

$84.63

by Parker Hannifin
Push-to-Connect Fittings:169PLP Male Elbow Swivel 90° – BSPP

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 169PLP-10M-6G Parker \| 10 \|
Series:	169PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button, Swivel

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	Thread BSPP	Hex (C)	L	N	Flow Diameter (D)
169PLP-4M-M5	4 mm	M5X0.8	3/8"	19.05 mm	19.79 mm	2.425 mm
169PLP-4M-2G	4 mm	1/8"	9/16"	19.05 mm	23.92 mm	3.175 mm
169PLP-4M-4G	4 mm	1/4"	3/4"	19.05 mm	30.27 mm	3.175 mm
169PLP-6M-M5*	6 mm	M5X0.8	3/8"	19.12 mm	18.52 mm	2.425 mm
169PLP-6M-2G	6 mm	1/8"	9/16"	19.12 mm	22.94 mm	3.960 mm
169PLP-6M-4G	6 mm	1/4"	3/4"	19.12 mm	29.23 mm	3.960 mm
169PLP-6M-6G	6 mm	3/8"	11/16"	19.12 mm	31.04 mm	2.425 mm
169PLP-8M-2G	8 mm	1/8"	9/16"	24.25 mm	27.13 mm	6.350 mm
169PLP-8M-4G	8 mm	1/4"	3/4"	24.20 mm	33.25 mm	6.350 mm
169PLP-8M-6G	8 mm	3/8"	11/16"	24.25 mm	33.22 mm	6.350 mm
169PLP-10M-4G	10 mm	1/4"	3/4"	23.75 mm	32.77 mm	6.350 mm
169PLP-10M-6G	10 mm	3/8"	11/16"	23.75 mm	32.61 mm	6.350 mm
169PLP-10M-8G	10 mm	1/2"	1-1/16"	23.75 mm	37.59 mm	6.350 mm
169PLP-12M-4G	12 mm	1/4"	3/4"	26.63 mm	35.20 mm	7.950 mm
169PLP-12M-6G	12 mm	3/8"	7/8"	26.63 mm	53.20 mm	9.525 mm
169PLP-12M-8G	12 mm	1/2"	1-1/16"	26.63 mm	38.96 mm	9.525 mm

*M5 seal is neoprene
