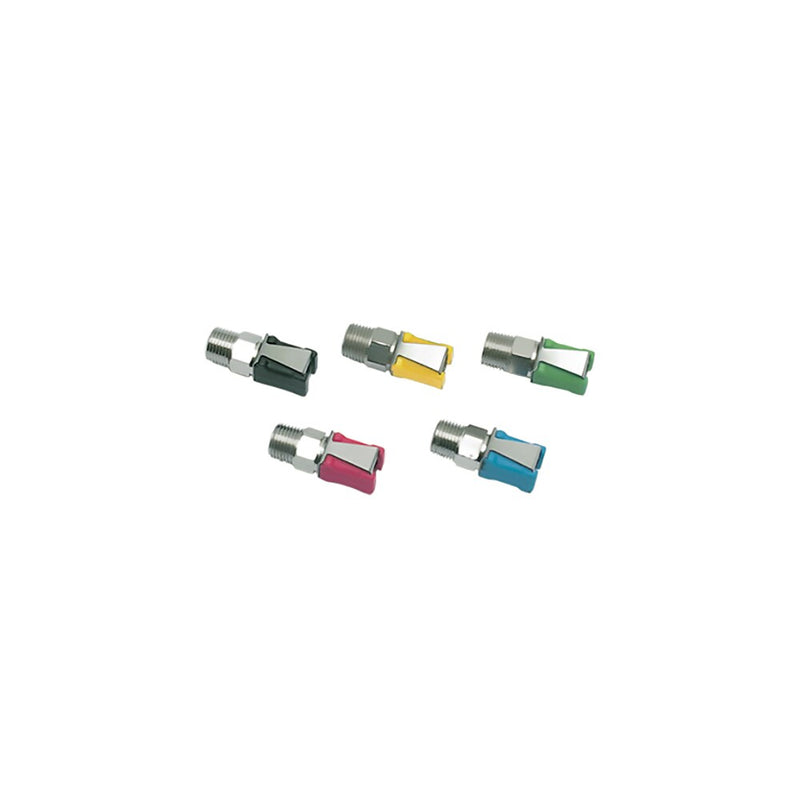

172 02 10 04 by Parker | Legris Coupler Quick Disconnect | 2 Diameter Nominal x 1/8" Male BSPT Thread | 10 mm Hex | Blue | Straight | Nickel-Plated Brass | Pack of 10

172 02 10 04 by Parker | Legris Coupler Quick Disconnect | 2mm Diameter Nominal x 1/8" Male BSPT Thread | 10 mm Hex | Blue | Straight | Nickel-Plated Brass | Pack of 10

Save $10.33 Save $10.33
$377.93
$377.93 - $377.93
$377.93
$367.60
$367.60 - $367.60
$367.60

by Parker Hannifin
Metal Quick-Acting Couplers:0171 Coupler with valve, Male BSPT and Parallel Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0171 02 10 04 Parker | 10 |
Series: 0171 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Ergonomic
Mini Series: The mini series offer space saving solutions for frequent disconnection of tubing or pneumatic tools.
  • Compact and ergonomic
  • Easy identification of circuits
  • Easy disconnection / single hand operation
Working Pressure:
  • up to 20 bar
Material:
  • Coupling: Technical Polymer, Nickel-Plated Brass
  • Plug: Nickel-Plated Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +60°C (NBR)
Flow Rate Air:
  • 165 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)
Part Number Diameter Nominal (DN) C F G L Kg
0171 02 10 01 2 1/8" 7.5 mm 10 mm 21 mm ..01 Kg
0171 02 10 04 2 1/8" 7.5 mm 10 mm 21 mm ..01 Kg

Single shut-off
Mini Series (DN 2): single shut-off= 165 Nl/min

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
