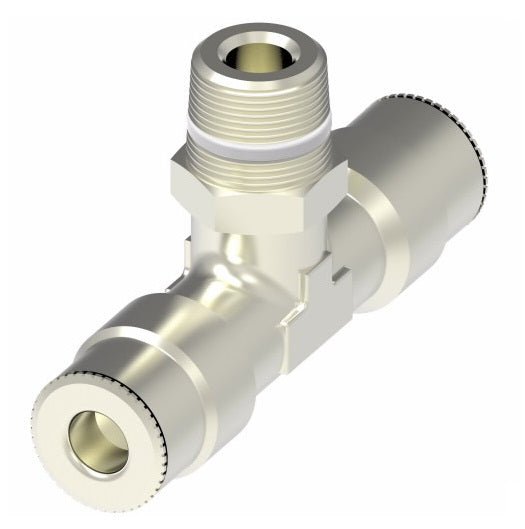

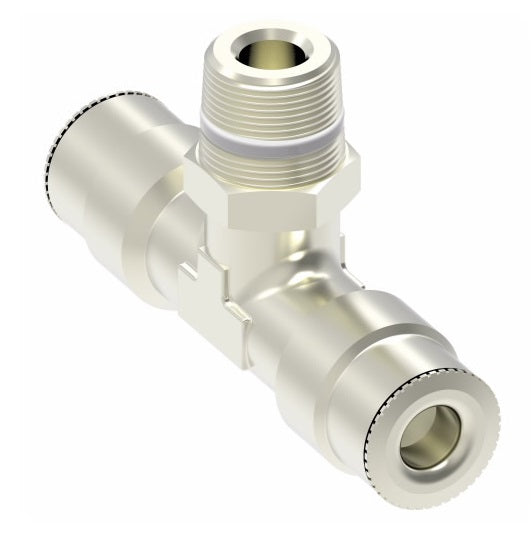

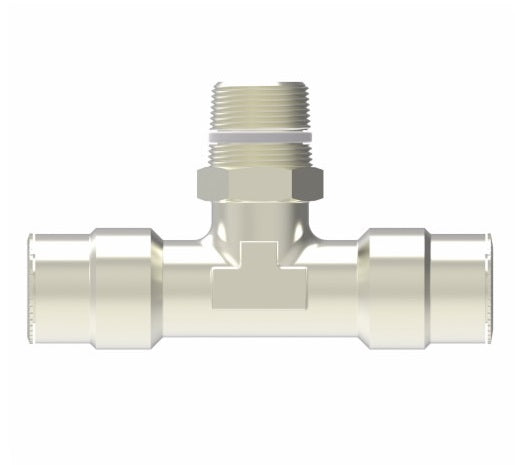

172x10Mx6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 10mm Tube OD x 10mm Tube OD x 3/8 Male BSPT Swivel | Nickel Plated Brass
172x10Mx6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 10mm Tube OD x 10mm Tube OD x 3/8 Male BSPT Swivel | Nickel Plated Brass
172x10Mx6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 10mm Tube OD x 10mm Tube OD x 3/8 Male BSPT Swivel | Nickel Plated Brass
172x10Mx6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 10mm Tube OD x 10mm Tube OD x 3/8 Male BSPT Swivel | Nickel Plated Brass

172x10Mx6PTS by Danfoss | Metric Push to Connect Adapter | Swivel Male Branch Tee (Universal BSPT/BSPP) | 10mm Tube OD x 10mm Tube OD x 3/8 Male BSPT Swivel | Nickel Plated Brass

$26.36 - $26.36
$26.36
$26.36 - $26.36
$26.36

Aeroquip® by Danfoss
Metric Push to Connect Adapter - Swivel Male Branch Tee (Universal BSPT/BSPP)
Specifications for Variant SKU: 1172X10MX6PTS Danfoss
Shape (Orientation): Tee
Ends Configuration: 10mm Push-to-Connect, 10mm Push-to-Connect, 3/8in Male BSPT, Some Ends Match
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: MTP160 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of fittings and the time savings of assembly and disassembly.
Used With:
  • MTP160 nylon tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • -40°F to 200°F (-40°C to 93°C).
Nominal Size 2 4 5MM 6 8
Thread
MM
(Metric Screw Thread)		     M5x.8
BSPT 1/8 (2PT) 1/4 (4PT)   3/8 (6PT) 1/2 (8PT)
BSPP 1/8 (2PP) 1/4 (4PP)   3/8 (6PP) 1/2
Nickel Plated Brass
Part Number 		Tube OD
(mm)		 Male BSPT
Thread		 C E F H I SW
(mm)		 SW1
(mm)
1172X4MX2PTS 4mm 1/8" 3.5 14.5 9.0 5.5 35 8 12
1172X5MX2PTS 5mm 1/8" 6.0 14.5 11.0 5.5 42 9 12
1172X6MX2PTS 6mm 1/8" 4.0 15.0 12.7 5.5 40 9 12
1172X6MX4PTS 6mm 1/4" 4.0 15.0 12.7 7.0 40 9 14
1172X8MX2PTS 8mm 1/8" 5.0 16.0 14.0 5.5 45 11 12
1172X8MX4PTS 8mm 1/4" 5.0 16.0 14.0 7.0 45 11 14
1172X8MX6PTS 8mm 3/8" 5.0 16.5 14.0 8.0 45 11 19
1172X10MX4PTS 10mm 1/4" 6.5 18.5 16.5 7.0 53 13 14
172x10Mx6PTS 10mm 3/8" 6.5 19.0 16.5 8.0 53 13 14
1172X12MX4PTS 12mm 1/4" 7.5 20.0 19.5 7.0 57 15 17
1172X12MX6PTS 12mm 3/8" 7.5 20.0 19.5 8.0 57 15 19
1172X12MX8PTS 12mm 1/2" 7.5 20.5 19.5 9.0 57 15 22
