Aeroquip® by Danfoss

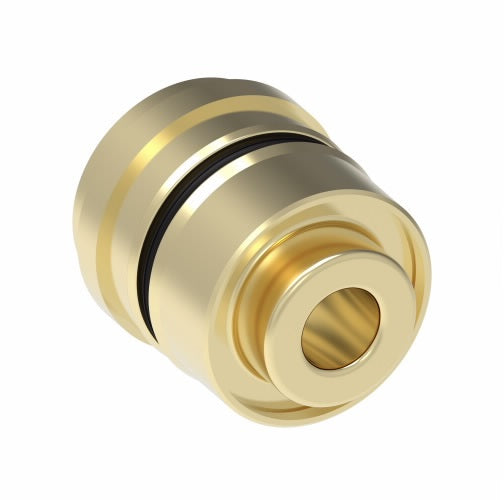

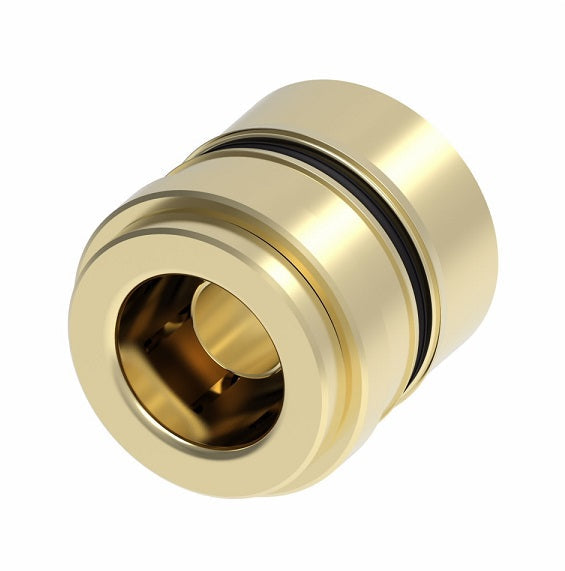

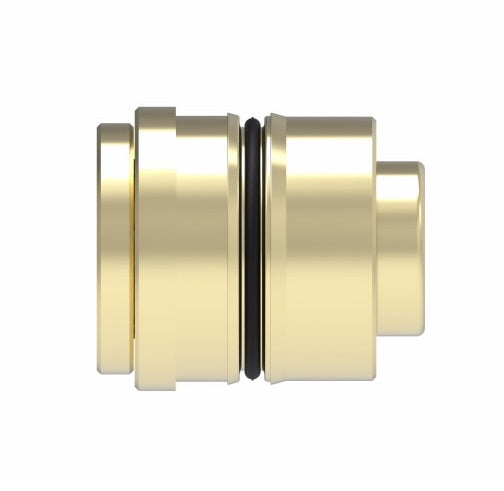

Quick Connect Air Brake Adapter - Encapsulated Cartridge
Specifications for Variant SKU: 1861X3 Danfoss
Material(s): Brass
Seal Material(s): Ethylene Propylene
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Diameter
F		 L D1 D H
1861X3 3/16" 0.44" 0.62" 0.12" 0.195" 0.16"
1861X4 1/4" 0.56" 0.65" 0.13" 0.263" 0.17"
1861X6 3/8" 0.69" 0.81" 0.22" 0.388" 0.19"
1861X8 1/2" 0.81" 0.83" 0.34" 0.513" 0.19"
